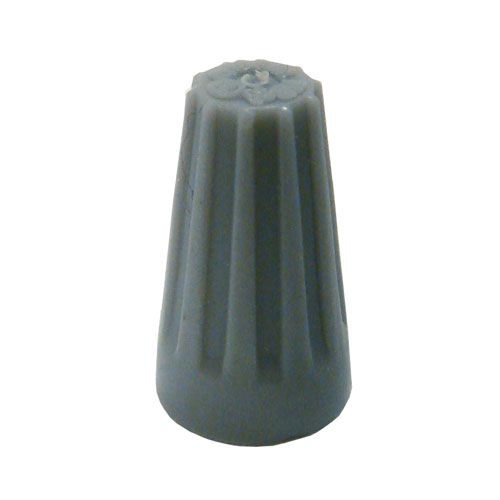

IDEAL, Twistwire Wire Connector, 30-071
View detailed images (1)

IDEAL, Twistwire Wire Connector, 30-071

Twistwire Wire Connector, 300V Max. Rating, 22 to 16 (2 #22 Min. to 2 #16 Max.) AWG Wire Range, Gray , Box of 100

SKUM47040
ManufacturerIDEAL
Units / Case100 / Box
Mfr. Part #30-071
UPC783250300716
Points0.10
$10.00
/ Box
Related Categories
Features
  • Fixed, square-wire spring creates its own threads - maintains a secure positive grip that will not relax over time
  • No pre-twisting required - positive grip design provides fast, easy installation
  • Deep, wide skirt helps protect against flash-over and turned-back strands for maximum dielectric protection
  • Reusable for easy circuit changes and additions
  • Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)
  • UL Listed to 486C and CSA certified to C22.2 #188; comply with Federal Specification W-S-610E
  • Classified in accordance with IEC Publications 998-2 and 998-2-4
Downloads
Specification
Type Twistwire Wire Connector
Max. Voltage Rating (V) 300
Temp. Rating (°F) 221 (105°C)
Color Gray
Width (In.) 0.33
Standards UL Listed and CSA Certified
Units Per Box 100
Height (In.) 0.58
Wire Range (AWG) 22 to 16 (2 #22 Min. to 2 #16 Max.)
