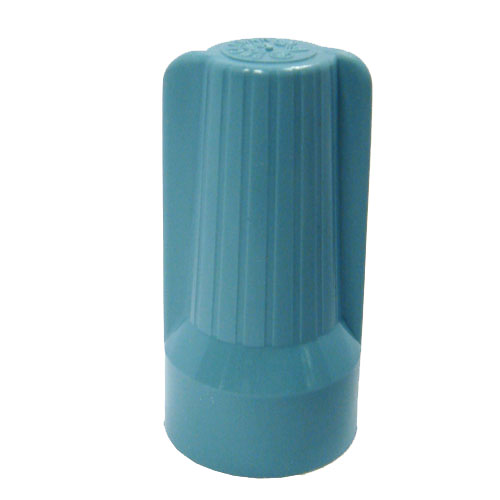

IDEAL, B-Cap® Wire Connector, B4-1
View detailed images (1)

IDEAL, B-Cap® Wire Connector, B4-1

B-Cap® Wire Connector, 600V Max. Rating, 14 to 6 (2 #12 Min. to 2 #6 Max.) AWG Wire Range, Blue-Gray, Box of 25

SKUM47053
ManufacturerIDEAL
Units / Case50 / Box
Mfr. Part #B4-1
UPC781789452036
Points0.31
$31.00
/ Box
Related Categories
Features
  • Classic Fin™ design provides secure grip for extra leverage on maximum wire combinations
  • Live-action spring expands to accept wire shape and size - no pre-twisting required
  • Square-wire spring threads directly onto conductors for fast, secure connections
  • Deep skirt protects against flash-over and turned-back strands for maximum dielectric protection
  • Easily removed for repeat usage on same size or larger wire combinations
  • Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)
  • UL 486C Listed
Downloads
Specification
Type B-Cap® Wire Connector
Max. Voltage Rating (V) 600
Temp. Rating (°F) 221 (105°C)
Color Blue-Gray
Width (In.) 0.75
Standards UL Listed
Units Per Box 50
Height (In.) 1.5
Wire Range (AWG) 14 to 6 (2 #12 Min. to 2 #6 Max.)
