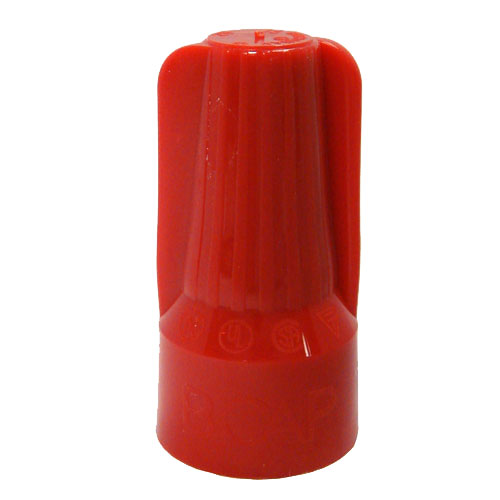

IDEAL, B-Cap® Wire Connector, B2-1
View detailed images (1)

IDEAL, B-Cap® Wire Connector, B2-1

Wirenuts B-Cap® Wire Connector, 600V Max. Rating, 22 to 8 (2 #18 Min. to 5 #12 Max.) AWG Wire Range, Red, Box of 100

SKUM47049
ManufacturerIDEAL
Units / Case100 / Box
Mfr. Part #B2-1
UPC781789451879
Points0.18
$18.00
/ Box
Related Categories
Features
  • Classic Fin™ design provides secure grip for extra leverage on maximum wire combinations
  • Live-action spring expands to accept wire shape and size - no pre-twisting required
  • Square-wire spring threads directly onto conductors for fast, secure connections
  • Deep skirt protects against flash-over and turned-back strands for maximum dielectric protection
  • Easily removed for repeat usage on same size or larger wire combinations
  • Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)
  • UL 486C Listed
Downloads
Specification
Type B-Cap® Wire Connector
Max. Voltage Rating (V) 600
Temp. Rating (°F) 221 (105°C)
Color Red
Width (In.) 0.56
Standards UL Listed and CSA Certified
Units Per Box 100
Height (In.) 1.16
Wire Range (AWG) 22 to 8 (2 #18 Min. to 5 #12 Max.)
