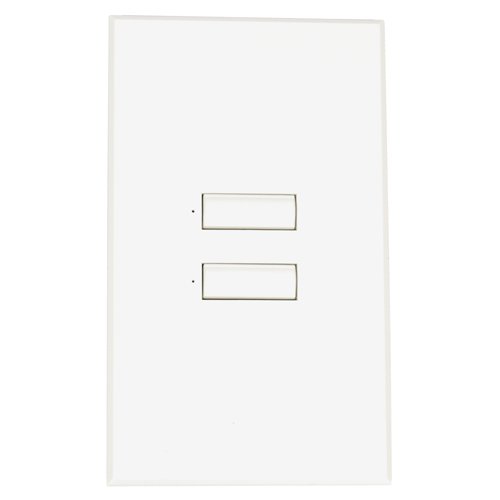

SeeTouch Wallstations, 2 Buttons, For 3000 And 4000 Series, Non-Insert, White

SKUM61511

Manufacturer

Color

White

Mfr. Part #SG-2BN-WH-E00

Request a quote for Better Price

UPC027557801386

Points1.95

$195.00

Qty

Benefits of total light control
Control every light in the room with a single touch Programmable fade times provide smooth transitions between lighting scenes Integrates easily with touch screens and other A/V equipment Offers multi-location control in many elegant wallstation styles Reduce electricity usage and cut maintenance cost

Layout and installation
Wire with low-voltage cable, GRX-CBL-346S-500 Power up to three wallstations/control interfaces from a single 3000 series control unit; for more than three, use a GRX-12VDC Derating not required when ganged Each seeTouch style wallstation counts one toward system maximum 16 wallstations/control interfaces

Features

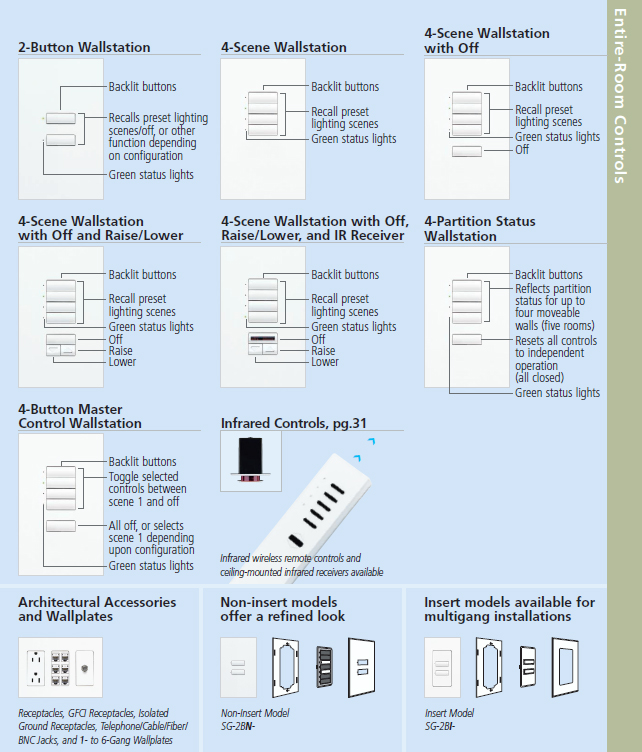

Often used in entryways for a variety of functions
Large, rounded buttons are easy to touch
Backlit buttons with optional on-button engraving make it easy to find and operate the control in low light conditions
Optional on-button engraving is angled up to the eye for easy reading
Has status LEDs to show which button was pushed last
Can be set up to invoke functions in just one Control Unit or group of up to eight Control Units
Comes with Faceplate, Faceplate Adapter, and Buttons
For use with GRAFIK Eye 3000/4000 Systems

Downloads

Specification

Style	SeeTouch
Type	For 3000 and 4000 Series
Buttons	2 Buttons
Insert Style	Non-Insert
Color	White
Engraving	Unengraved
Power Input	Low-voltage type Class 2(PELV), 12VDC to 24VFW

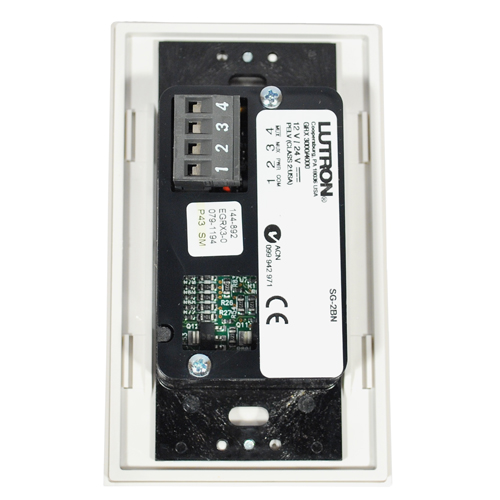

Terminals	Accept up to two #18 AWG typical
Environment	32-104 °F (0-40 °C), Relative humidity less than 90% non-condensing
Mounting	Typical backbox dimensions: 3.74 in. (95 mm) high, 2.17 in. (55 mm) wide, 2.75 in. (70 mm) deep
Height (In.)	4 9/16
Width (In.)	2 3/4
Depth (In.)	1 1/16
Warranty	1 Year Limited
