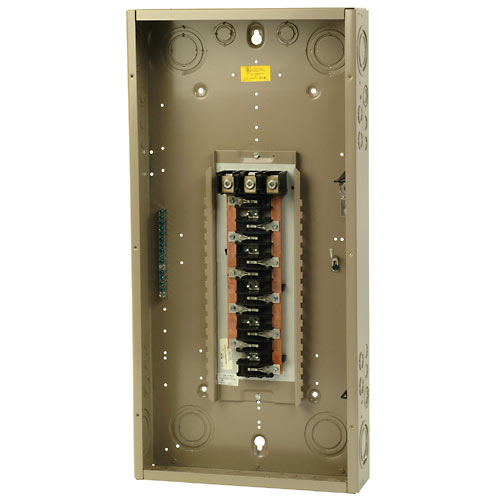

| Trade Name | CH |
|---|---|
| Main Type | Main Lug |
| Phase | 3 |
| Wire | 4 |
| Main Ampere Rating (A) | 150 |
| Voltage Rating | 208Y/120VAC or 240VAC |
| Enclosure Type | NEMA 1 (Indoor) |
| Enclosure Meterial | Metallic |
| Max. Number 3/4" Poles | 30 |
| Neutral | Insulated/Bondable Neutral |
| Mounting Type | Plug-In |
| Cover | Sold Separately |
| Cover Type (Combination) | CH8DF |
| Cover Type (Surface) | CH8DS |
| Bus Material | One-Piece Silver Flash Plated Copper Bus |
| Grounding Bar | Factory Installed |
| Notes | Furnished with hub closure plates |
| Wire Size | Cu/Al #4 - 300 kcmil |
| Height (In.) | 29.13 |
| Width (In.) | 14.31 |
CH Loadcenter Cover, Indoor, NEMA 1, Flush / Surface, Box Size D
CH Loadcenter Cover, Indoor, NEMA 1, Surface, Box Size D
1 Pole, 20A, Plug-in, 120/240 VAC, Type CH Standard Circuit Breaker
2 Pole, 20A, Plug-in, 120/240 VAC, Type CH Standard Circuit Breaker
3 Pole, 20A, Plug-in, 240 VAC, Type CH Standard Circuit Breaker
Eaton Corp/Cutler-Hammer, 1 Pole, 20/20 A, Plug-in, 120/240 VAC, Type CHT (Twin) Circuit Breaker
1 Pole, 20A, Plug-in, 120/240 VAC, Type CH Ground Fault Circuit Breaker
