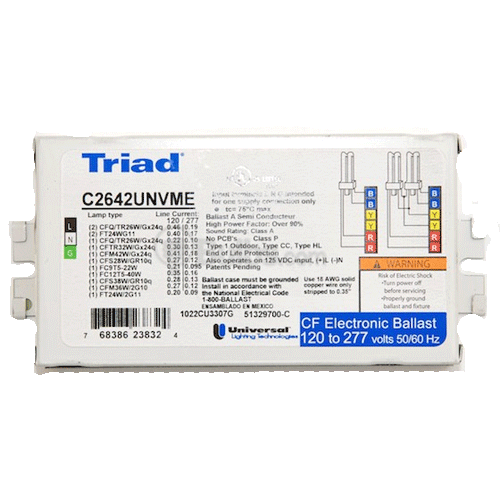

Universal Lighting Technologies, Electronic Ballast kit, C2642UNVME000K

SKUM35064

Manufacturer

Mfr. Part #C2642UNVME000K

UPC768386238294

Points0.33

$33.09

Qty

Features

Universal input voltage (108 305 volts, 50/60Hz)
1- or 2-lamp operation of multiple lamp applications
End-of-lamp life shutdown circuit for safe operation
Auto-reset of lamp after shutdown
THD<10%; Power Factor >.98
Programmed Rapid Start (PRS) to maximize lamp life
Lamp Application ; (1) or (2) 26 Watt Quad (1) or (2) 26 Watt Triple (1) 32 Watt Triple (1) 42 Watt Multi (1) or (2) 24 Watt Twin Tube (1) 36 Watt Multi (1) 28 Watt 2D (1) 38 Watt 2D (1) 22 Watt Circline (1) 40 Watt Circline""
Mult-E Kit Contains : - Multi-exit ballast - Snap-mount adapter plate - Lead wire set - Wire extraction tool - Instructions""
Side and Bottom Exit Terminals

Downloads

Specification

Type	Electronic Ballast
Lamp Type	Compact
Number of Lamps	1 or 2
Application	CFM42W/GX24q, CFTR32W/GX24q, CFQ/TR26W/GX24q, CFS28W/GR10q (2D) 4-pin lamps, FC9T5-22W, FC12T5-40W, CFS38W/GR10q, CFM36W/2G10, FT24W/2G11
Input Volts (V)	120/277
Starting Method	Programmed Rapid Start
Height (In.)	1
Width (In.)	2.31
Length (In.)	4.94
Standards	cULus Listed (Class P) Type 1 Outdoor, Type CC, Type HL
