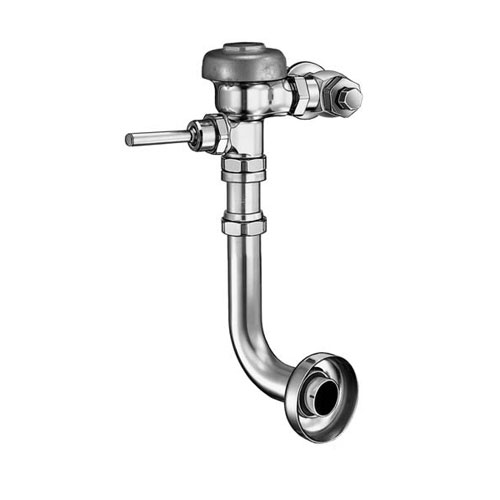

Regal, Exposed Urinal Flush Valves, For 1 1/4" Top Spud Urinals, 1.0 GPF (3082475)

SKUM63167
ManufacturerSloan
Mfr. Part #REGAL-180-1 XL
UPC671254123489
Points1.63
$163.34

Features
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • Vacuum Breaker Flush Connection
  • Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Low Consumption flush accuracy controlled by Para-Flo Technology
  • Handle Packing, Stop Seat and Vacuum Breaker to be Molded from PERMEX Rubber Compound for Chloramine Resistance
Downloads
Specification
Serises Manual Flush Valvess
Class Urinal Flush Valves
Type Diaphragm
Model Regal
Flush Cycle Low Consumption
Gallons per Flush (GPF.) 1
Top-Spud (In.) 1 1/4
Finish Chrome Plated
Standards CSA Certified
Includes ADA Compliant Handle, Vandal Resistant Stop Cap with Set Screw, and Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
