Sloan, Flush Valves, ECOS-8111-1.6/1.1
View detailed images (1)

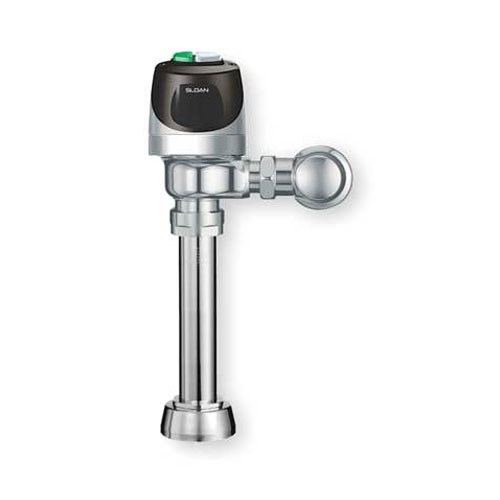

Sloan, Flush Valves, ECOS-8111-1.6/1.1

ECOS, Sensor Activated Sloan ECOS Electronic Dual Flush Model Water Closet Flush Valves, 1.6/1.1 GPF (3370400)

SKUM63163
ManufacturerSloan
Mfr. Part #ECOS-8111-1.6/1.1
UPC671254341661
Points5.58
$557.96

Features
  • If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced fl ush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
  • If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full fl ush initiates (1.6 gpf/6.0 Lpf) eliminating solid waste and paper waste
  • Reduces water volume by up to 30% when a reduced flush occurs
  • PERMEX Synthetic Rubber Flex Tube Diaphragm with twin linear filtered bypass and vortex cleansing action designed for improved life and reduced maintenance
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection with range adjustment screw
  • For floor mounted or wall hung top spud bowls
  • Engineered Metal Cover with replaceable Lens Window
  • User friendly three (3) second Flush Delay, "Low Battery" Flashing LED
  • Free Spinning, Vandal Resistant Stop Cap
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Downloads
Specification
Serises Sensor Operated Flush Valvess
Class Electronic Dual Flush
Type Diaphragm
Model ECOS
Flush Cycle Full and Reduced Flush
Gallons per Flush (GPF.) 1.6(Large)/1.1(Small)
Top-Spud (In.) 1 1/2
Function Touchless Sensor Operation
Battery Type (4) AA
Finish Chrome Plated
Warranty 3 Years Limited
