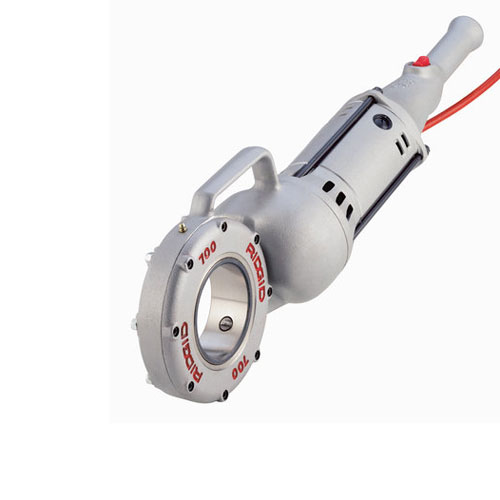

| Model No. | 700 |
|---|---|
| Pipe Threading Capacity (In.) | 1/8 - 2 (3-50mm) |
| Rod Threading Capacity (In.) | 1/4 - 1 (6-25mm) |
| Max. Geared Threader Capacity (In.) | 6 (150mm) |
| Standards | UL Listed and CSA Certified |
| Technical Specifications | |
| Motor | 1/2 HP Universal 115V, 50/60Hz |
| Switch | Double-throw reversible |
| Spindle Speed | 16-30 RPM (No load) |
| Gear Housing | Spur gear reduction face gear drive Spring-loaded adapterpawls Hardened steel spindle gear |
| Body | Cast aluminum |
