PVC, 45° Elbows Plain End, 4" Size, Schedule 80
View detailed images (1)

PVC, 45° Elbows Plain End, 4" Size, Schedule 80

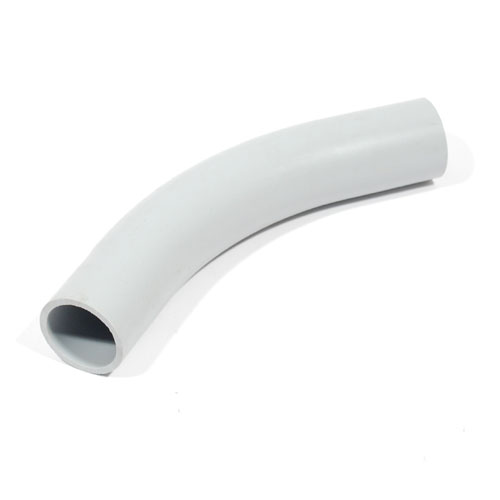

PVC Conduit Elbow, Schedule 80, 45° Elbows Plain End, 4" Size, Heated and bent to effect a 45 deg change in direction in a conduit run

SKUM52948
ManufacturerThomas and Betts
Mfr. Part #UB7AN
UPC3 00 88700 507
Points0.73
$73.43

Approved Vendors
• Conduit Pipe Product Company
• Kraloy Fittings Co.
• Topaz Electrical Corp.
• American Fittings Corp.
• Pallas Aluminum Co.
• Arlington Industries, Inc
• Bridgeport Fittings, Inc

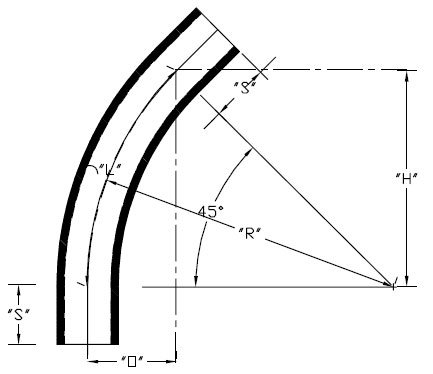

Dimensions
Conduit Elbows,
Specification
Type Conduit Elbows
Degrees 45 Deg
Dimension_R (In.) 16
Dimension_O (In.) 4 11/16
Dimension_H (In.) 11 7/16
Dimension_S Min (In.) 3 3/8
Dimension_L (In.) 12 5/8
Material PVC
Standards UL Listed
