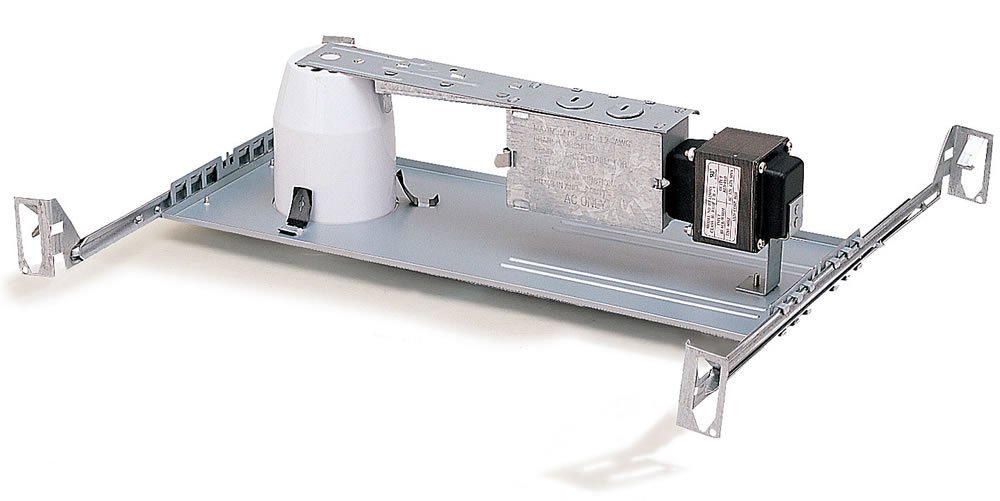

NL-301QAT, 3" Air-Tight Low Voltage New Construction Housing
Features
Air Tight (AT): Available with air-tight housings that include a pre-installed gasket to restrict airflow from room into ceiling plenum (See specification)
Lamp Adjustment: Circular bracket on low voltage trims provides a secure snap-in hold and friction-locked aiming adjustment. Trims for JC sockets have sockets preset for optimum angle and light output.
Bar Hangers: Bar hangers are adjustable from 13-5/8" to 24-1/2" with captive nails
Junction Box: Contains one 3/4", two 1/2" knockouts and four Romex® pryouts with strain relief
Dimming: Use magnetic low voltage dimming control with magnetic transformer or electronic low voltage dimming control with electronic transformer
Wattage: 20W-50W (actual wattage varies with trim)
Lamp: 12V MR16 or Bi-Pin GY6.35. Approved for use Soraa LED lamps with electronic transformer.
