McDonnell & Miller, PSE-802-M-24, 153602

McDonnell & Miller, PSE-802-M-24, 153602

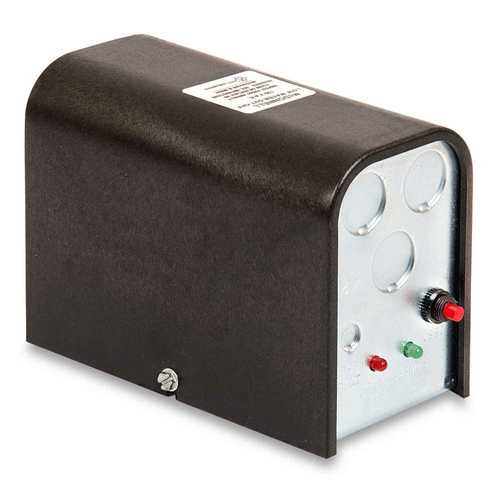

Electronic Low Water Cut-Off for Steam Boilers, Series PS-800, Model# PS-802-M-24, 24V, with Manual Reset

SKUM69620
ManufacturerMcDonnell & Miller
Mfr. Part #153913
UPC783310019824
Points3.01
$301.00

Features
  • For residential and commercial applications
  • Electronic operation
  • User-friendly diagnostics
    - Red low water and shorted probe LED
    - Green power and test LED
  • No lock out with loss of power if probe is in water
  • No blow down of control required when mounted directly into boiler tappings
  • Test button standard on all models
  • Provisions to add alarm or automatic water feeder
  • Maximum ambient temperature 120°F (49°C)
  • Maximum steam pressure 15 psi (1 kg/cm²)
  • Maximum water temperature 250°F (121°C)
Downloads
Specification
Category Boiler Controls
Series PS-800
Model No. PS-802-M-24
Probe sensitivity 7000 ohms
Power Consumption 1.7 VA
Voltage 24 VAC
Pilot Duty 50 VA
Modification M : with Manual Reset
Standards UL listed, CSA certified
