McDonnell & Miller, Model 61, 140100
View detailed images (1)

McDonnell & Miller, Model 61, 140100

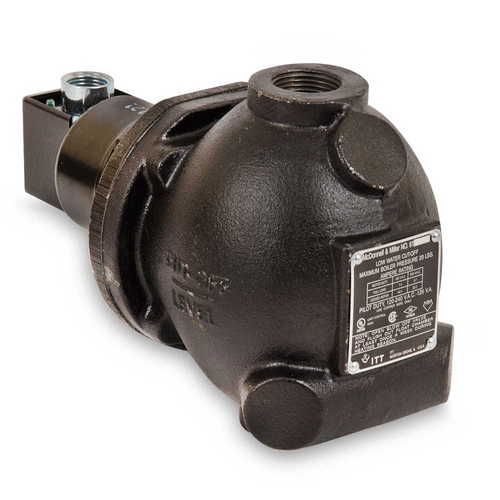

Mechanical Low Water Cut-Off for Steam Boiler, Series 61, Model# 61

SKUM69610
ManufacturerMcDonnell & Miller
Mfr. Part #140100
UPC783310019824
Points7.30
$730.00

Features
  • For residential and commercial low pressure steam boiler applications
  • For boilers of any steaming capacity
  • Adjustable BX outlet for easy installation
  • Dual precision switches for dependable operation of the low water cut-off and alarm or electric water feeder
  • Packless bellows
  • 1" NPT equalizing pipes and blow down valve required
  • Maximum steam pressure 20 psi (1.4 kg/cm²)
Downloads
Specification
Category Boiler Controls
Series 61
Model No. 61
Standards UL listed, CSA certified
Electrical Ratings - 120 VAC
Motor Switch Rating(Amperes) - 120 VAC Full Load - 7.4
Locked Rotor - 44.4
Pilot Duty - 120 VAC 125 VA
Electrical Ratings - 240 VAC
Motor Switch Rating(Amperes) - 240 VAC Full Load - 3.7
Locked Rotor - 22.2
Pilot Duty - 240 VAC 125 VA
