Lutron, Grafik Eye, PHPM-WBX-120-WH
View detailed images (1)

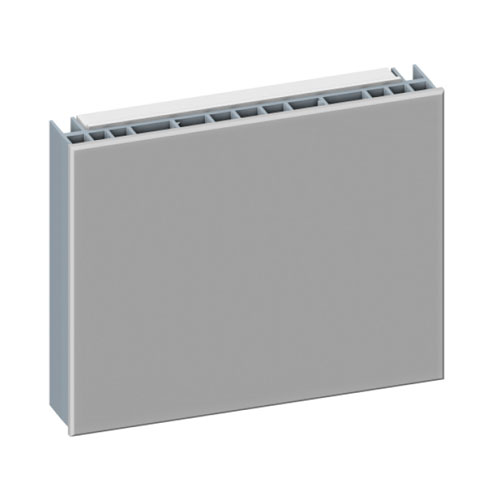

Lutron, Grafik Eye, PHPM-WBX-120-WH

Grafik Eye, Phase-Adaptive Power Module with 3-Wire Fluorescent Input, Power Interfaces, White

SKUM57276
ManufacturerLutron
ColorWhite  White
Mfr. Part #PHPM-WBX-120-WH
UPC027557624763
Points2.78
Please call 1-888-884-0911 or email at support@mrsupply.com for more info.

Features
  • When connected to a 20A a circuit breaker, provides apacity on a 3-wire fluorescent dimmer for a full 16A load of lighting
  • Used to dim incandescent, halogen, electronic low-voltage, magnetic low-voltage, neon/cold cathode, Llutron Ttu-WireTMtm, or Aadvance Mmark X lighting sources
  • Phase-adaptive technology automatically selects leading-edge or trailing-edge dimming for low-voltage transformers
  • Up to 3 power modules may be controlled by a single dimmer
  • Models require 120V~ control voltage
  • Models available for 120V~ only
  • Compatible with 220/240V~ non-CE systems; contact for specific system applications
  • Not for use with non-dim loads
Downloads
Specification
Style Grafik Eye
Voltage (V) 120
Capacity (A) 16A, 1920W
Type Power Interfaces
Load Type Each terminal accept up to two 2 AWG
Environment Indoors Only, 32-104 °F (0-40 °C), Relative humidity less than 90% non-condensing
Mounting Surface or recess mount, Power module is ULul tested and approved for use in air plenums
Color White
Standards UL Listed and CSA Certified
