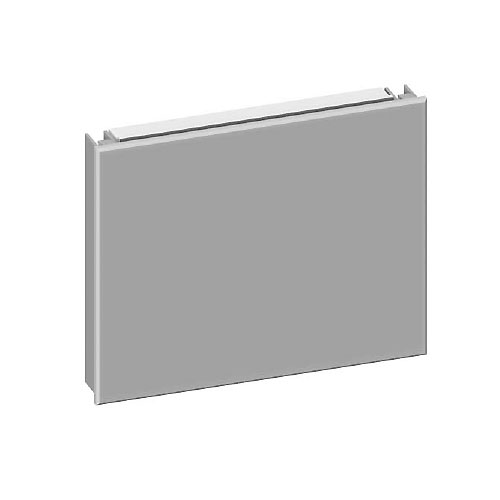

Lutron, Grafik Eye, PHPM-3F-DV-WH

Lutron, Grafik Eye, PHPM-3F-DV-WH

3-Wire Fluorescent Power Module, 120 VAC Control Power, 120/277V Load Power, 16A Capacity, White

SKUM49082
ManufacturerLutron
ColorWhite  White
Mfr. Part #PHPM-3F-DV-WH
UPC027557533898
Points3.42
Please call 1-888-884-0911 or email at support@mrsupply.com for more info.

Works with
  • Lutron 3-Wire Fluorescent Dimmers (consult Lutron for Vierti®)
  • GRAFIK Eye QS Control Units
  • GRAFIK Eye 3000 Series Control Units
  • LP, LCP, and GP Dimming Panels
  • HomeWorks® remote Power Panels
Features
  • Provides capability for a Zone on a GRAFIK Eye Control Unit (or other product) to Dim Fluorescent Lights that have Lutron Hi-Lume® and Eco-10® (Eco Series) Line-Voltage control Electronic Dimming Ballasts
  • Uses Softswitch® arcless Switching Technology
  • Up to 3 Power Modules may be wired on a single GRAFIK Eye Zone
  • Patented RTISS™ circuitry compensates in Real Time for Incoming Line Voltage Variations : Compensates for +/-2% change in RMS Voltage/Cycle and +/-2% Hz change in Frequency/Second
  • Provides air-gap off
  • Module protects itself during temporary Over-Current Conditions on Dimmed Output
  • Two LEDs on front of Unit provide Diagnostic Information (visible when Faceplate is removed)
Downloads
Specification
Style Grafik Eye
Type Fluorescent Power Module
Number of Wire 3 Wire
Control / Load Power • 120 V~ / 120-277 V~
• 50/60 Hz, Phase-to-Neutral
Load (Output) Power Phase Independent of Control Unit
Capacity 16 A
Load Type Operates Lutron Hi-Lume® and Eco-10® (Eco Series) Line-Voltage Control Electronic Dimming Ballasts with a smooth continuous Square Law Dimming Curve
Terminals Accept up to two #12 AWG (2.5 mm²)
Environment • 32-104 °F (0-40 °C), Relative Humidity less than 90% Non-Condensing
• Maximum BTU/hour of module : 15
Mounting • Surface or recess mount indoors only
&bul; Power module is UL tested and approved for use in air plenums
Color White
Height (In.) 5.1
Width (In.) 6.3
Depth (In.) 1.6
Standards UL Listed
