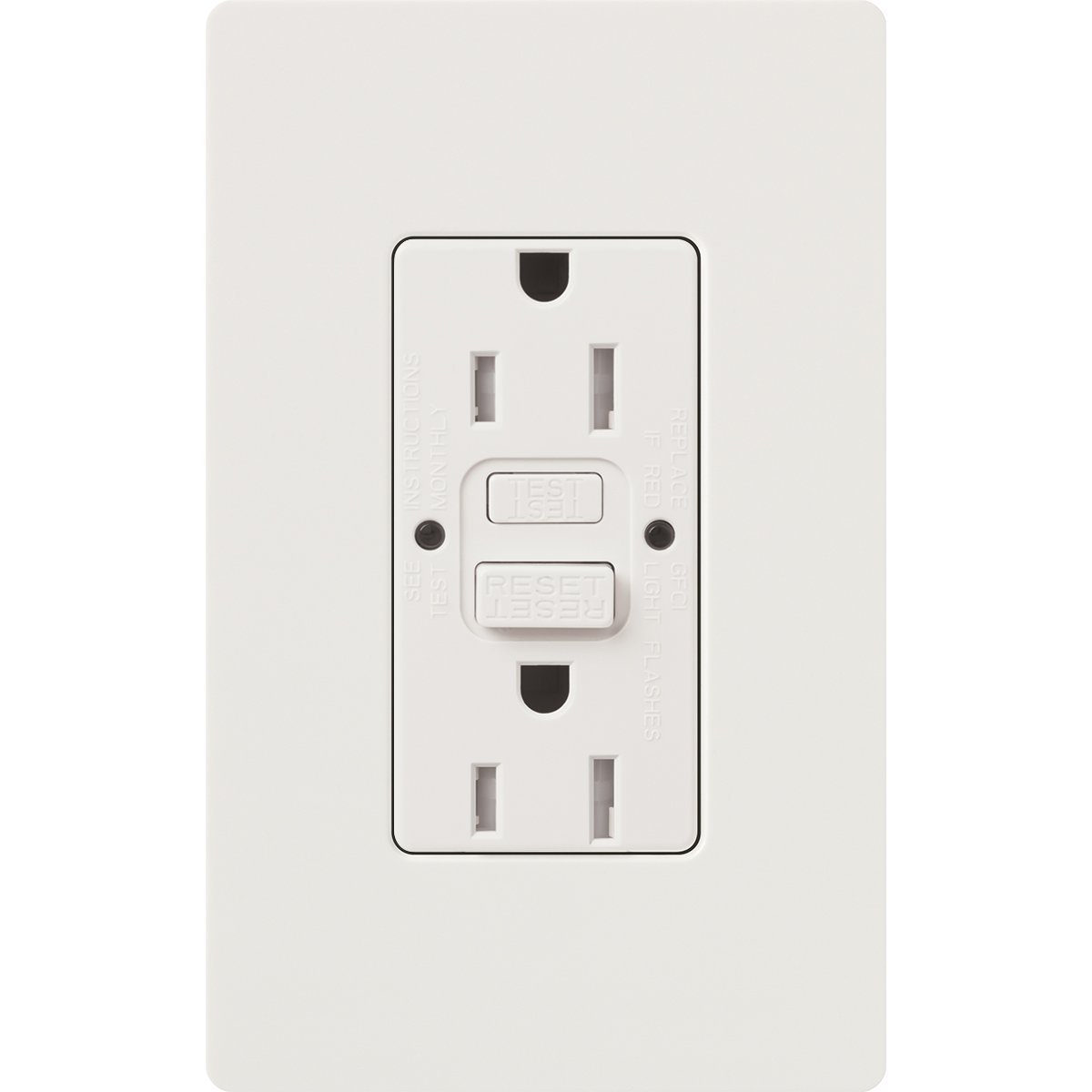

Claro, Tamper Resistant, Self-testing GFCI Receptacles, 15A, 125V, White
Notice
Wallplates Sold Separately
Features
Continuous self-test functionality – disconnects power to receptacle if critical components are damaged and GFCI protection is lost – providing “continuous self-testing†that initiates within 2.5 seconds and is a continuous cycle every 30 seconds
Three provisions for providing protection:
- Continuous electronic sensing, testing and evaluation utilizing diagnostic software located on the printed circuit board.
- Traditional testing mode by manually operating the “test and reset†buttons utilizing a supervisory circuit as specified in UL 943 section 5.15.
- Auto-sensing mode for immediate interruption for a ground fault condition for Class A protection (4 – 6 mA).
Manual Test – this design incorporates a full system test function. The GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board. This in turn causes the mechanical system to react based on the action of
Clear visual indication of GFCI status - LEDs indicate the following:
- Green LED (power to the device)
- Red LED (trip condition/ground fault condition)
- Flashing Red LED (end of life)
Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device.
Internal back wiring clamp and guide pocket — quick and dependable termination.
Receptacle face compatible with NEMA designer and NovaT*® designer-opening wallplates.
