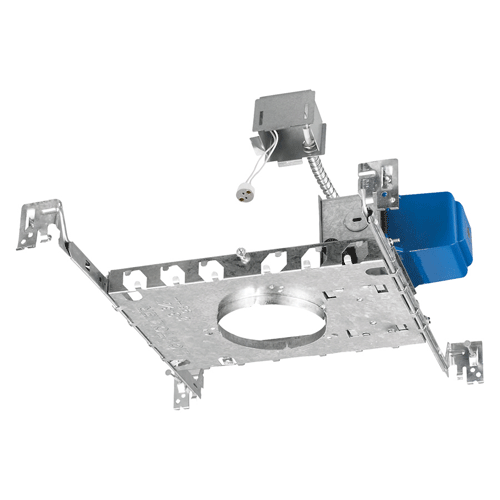

Channel: Ideal for retrofit installation. Bends at the thinner section to ease nstallation. Permits wiring from below the ceiling.
Socket: Porcelain body. Two-pin (GX5.3 base). Pre-wired with 18 ga. Teflon 250 degree leads to junction box.
Thermal Protector: Meets CSA/UL requirements. Insulation, if used, must be kept 3" (76mm) away from luminaire sides and junction box.
Potted Transformer: 50VA Magnetic, 120 volts primary, nominal 12 volt secondary, class "H". Can be removed easily. Fully encapsulated in epoxy resin inside aluminum casing.
Junction Box: 3-1/2 po (89mm) x 2-1/2 po (64mm) x 2 po (51mm) satin coated steel 20 ga. CSA certified for maximum of 4 No. 12 ga., 90 degree C through branch wiring. With two (2) 7/8" (22mm) integral pryouts. Easy access from both sides with two hinged ju
BX Cable: Bends down to make easier the installation
Sound insulation gasket, absords part of the vibrations.
