Leviton, AFTR1-W

Leviton, AFTR1-W

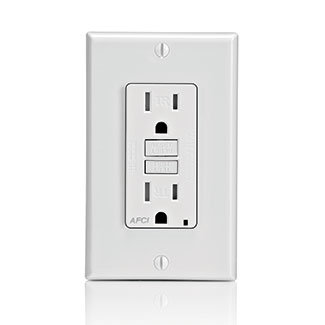

15A 125VAC, 20A Feed-Through, AFCI Duplex Receptacle, Tamper Resistant, Self Grounding, Back & Side Wired, White

SKUM73428
ManufacturerLEVITON
Mfr. Part #AFTR1-W
UPC784497644403
Points0.26
$25.83

Features
  • Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with. This translates into greater acceptance of the technology and a more user-friendly platform
  • Automatically tests the AFCI every time the RESET button is depressed; the AFCI will not reset if the AFCI circuit is not functioning properly
  • By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
  • A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices; a green LED indicator on the AFCI’s face also illuminates to alert
  • TR symbol indicates the device’s compliance with the latest NEC® requirements for Tamper Resistant receptacles in residences and childcare facilities
  • Device design reduces nuisance tripping
  • Impact-resistant thermoplastic cover and body
  • Superior resistance to electrical surges and over-voltages
  • Terminals allow for easy wiring options – back and side wire capable
  • Meets or exceeds UL requirements for tripping time on both series and parallel arcs
Downloads
Specification
Type Tamper Resistant Arc Fault Duplex Receptacle
Grade Residential
Amps (A) 15
Volts (VAC) 125
NEMA 5-15R
Wiring 2-Pole 3-Wire
Grounding GFCI Ground Fault
Color White
Standard UL Listed
Warranty 2 Year Limited
