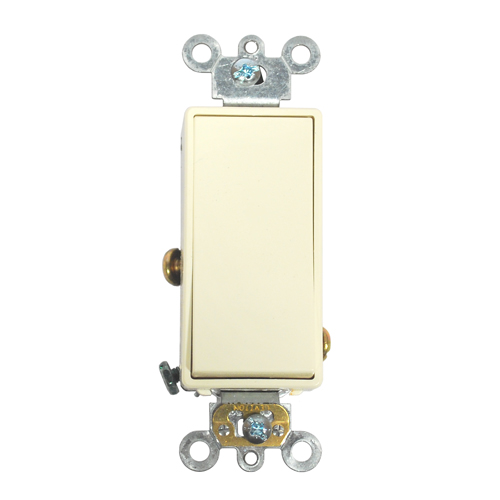

Leviton, 5691-2A

Leviton, 5691-2A

15A 120/277VAC, Decora Rocker Switch, Commercial Grade, Single-Pole AC Quiet Switch, Back & Side Wired, Almond

SKUM37990
ManufacturerLeviton
Mfr. Part #5691-2A
UPC078477796177
Points0.06
$6.39

Features
  • Full rated current capacity with tungsten, fluorescent or resistive loads. Motor capacity is 80% of switch rating

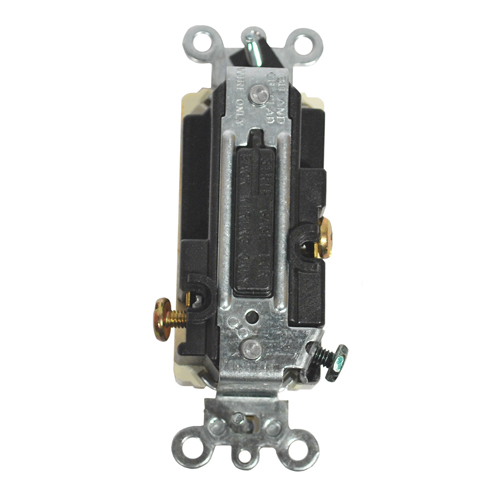

  • Back and side-wiring terminals accept both solid and stranded wire to ease installation
  • New architecturally-styled smooth-action concave rocker
  • Heavy-duty impact-resistant thermoplastic construction for long service life in commercial applications
  • Two ground connection options: a green grounding screw and a self-grounding clip
Downloads
Specification
Type AC Quiet Rocker Switch
Style Decora
Grade Commercial
Amps (A) 15
Voltage (V AC) 13/30
HP Rating (HP) 1/2 (120V) / 2 (240-277V)
Max Amperage (A) 12
Pole Config Single-Pole
Color Almond
Termination Back & Side
Grounding Self Grounding
Height (In.) 4.06
Width (In.) 1.3
Depth( In.) 1.16
Standard UL Listed and CSA Certified
