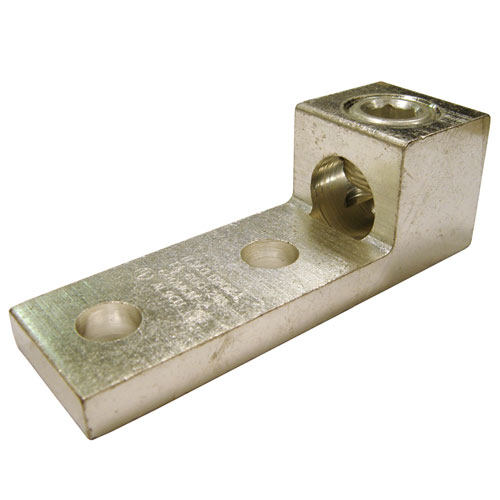

ILSCO, Aluminum Mechanical Lug, TA-600-2NS
View detailed images (1)

ILSCO, Aluminum Mechanical Lug, TA-600-2NS

Aluminum Mechanical Lug, Dual Rated, 600 kcmil - 2 AWG Conductor Range, 1/2 Bolt Size

SKUM46625
ManufacturerILSCO
Mfr. Part #TA-600-2NS
UPC783669892253
Points0.26
$26.35

REQUEST QUOTE

Submit your request and you can expect to receive response from us within 24hrs. Fields marked with * are required.
Full Name *
E-Mail *
Request Qty *
Mfr. Part # *
Comment
Out of Stock

Cross References
Manufacturer Part Number
BURNDY KA36U-2N

Features
  • Manufactured from high strength 6061-T6 aluminum alloy
  • Electro-Tin plated
  • Suitable for use with either copper or aluminum conductors
  • Chamfered wire entry provides ease of installation
Downloads
Specification
Type Aluminum Mechanical Lug
Lug Type One Conductor Dual Rated
Conductor Wire Range 600 kcmil - 2 AWG
Hex Size (In.) 0.50
Bolt Size 1/2
Mounting Hole Spacing (In.) 1.75
Length (In.) 4.69
Height (In.) 1.38
Width (In.) 1.50
Standards UL Listed
