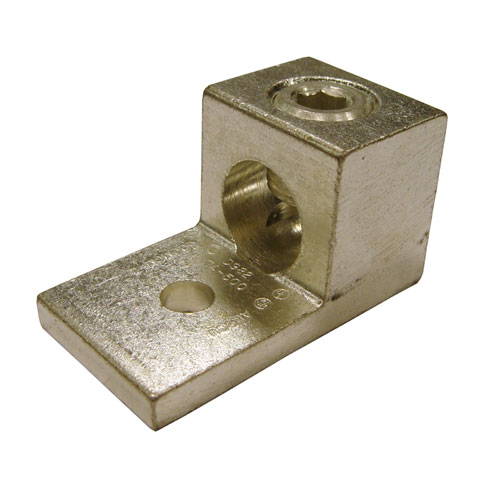

ILSCO, Aluminum Mechanical Lug, TA-500
View detailed images (1)

ILSCO, Aluminum Mechanical Lug, TA-500

Aluminum Mechanical Lug, Dual Rated, 500 kcmil - 4 AWG Conductor Range, 3/8 Bolt Size

SKUM46623
ManufacturerILSCO
Mfr. Part #TA-500
UPC0783669891010
Points0.09
$9.16

Cross References
Manufacturer Part Number
ANDERSON DA500

Features
  • Manufactured from high strength 6061-T6 aluminum alloy
  • Electro-Tin plated
  • Suitable for use with either copper or aluminum conductors
  • Chamfered wire entry provides ease of installation
Downloads
Specification
Type Aluminum Mechanical Lug
Lug Type One Conductor Dual Rated
Conductor Wire Range 500 kcmil - 4 AWG
Hex Size (In.) 0.50
Bolt Size 3/8
Length (In.) 2.81
Height (In.) 1.81
Width (In.) 1.50
Standards UL Listed
