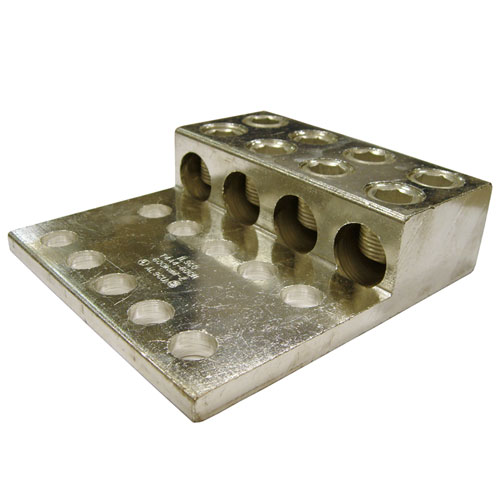

ILSCO, Aluminum Mechanical Lug, T4A4-600N
View detailed images (1)

ILSCO, Aluminum Mechanical Lug, T4A4-600N

Aluminum Mechanical Lug, Dual Rated, 600 kcmil - 2 AWG Conductor Range, 1/2 Bolt Size, 0.5" Hex Size

SKUM46605
ManufacturerILSCO
Mfr. Part #T4A4-600N
UPC0783669912265
Points0.85
$85.31

Cross References
Manufacturer Part Number
ANDERSON L4D4-600

Features
  • Manufactured from high strength 6061-T6 aluminum alloy
  • Electro-tin plated
  • Dual Rated for Copper and Aluminum Conductor
  • Chamfered wire entry provides ease of installation
  • Must be mounted with a minimum of 4 bolts
  • Mounting hole spacing from side to side, hole to hole is 0.88"
Downloads
Specification
Type Aluminum Mechanical Lug
Lug Type Four Conductor Dual Rated
Conductor Wire Range 600 kcmil - 2 AWG
Hex Size (In.) 0.50
Bolt Size 1/2
Length (In.) 5.63
Height (In.) 1.69
Width (In.) 5.00
Standards UL Listed
