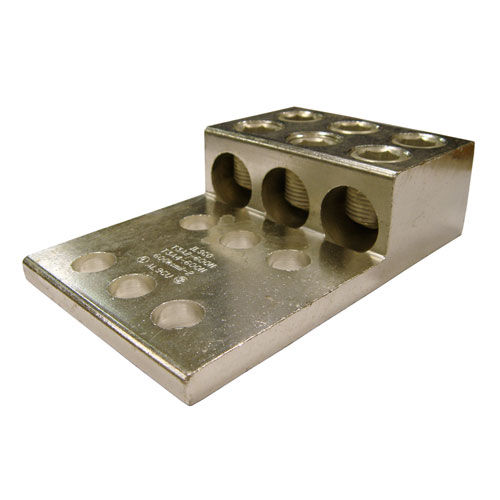

ILSCO, Aluminum Mechanical Lug, T3A2-600N
View detailed images (1)

ILSCO, Aluminum Mechanical Lug, T3A2-600N

Aluminum Mechanical Lug, Dual Rated, 250 kcmil - 6 AWG Conductor Range, 1/2 Bolt Size, 0.38" Hex Size

SKUM46632
ManufacturerILSCO
Mfr. Part #T3A2-600N
UPC0783669900576
Points0.89
$89.39

Cross References
Manufacturer Part Number
COMEC L3D2-600

Features
  • Manufactured from high strength 6061-T6 aluminum alloy
  • Electro-Tin plated
  • Suitable for use with either copper or aluminum conductors
  • Chamfered wire entry provides ease of installation
  • Must be mounted with a minimum of 2 bolts
  • Mounting hole spacing from side to side, hole to hole is 0.875"
Downloads
Specification
Type Aluminum Mechanical Lug
Lug Type Three Conductor Dual Rated
Conductor Wire Range 600 kcmil - 2 AWG
Hex Size (In.) 0.38
Bolt Size 1/2
Mounting Hole Spacing (In.) 1.75
Length (In.) 5.63
Height (In.) 1.69
Width (In.) 3.75
Standards UL Listed
