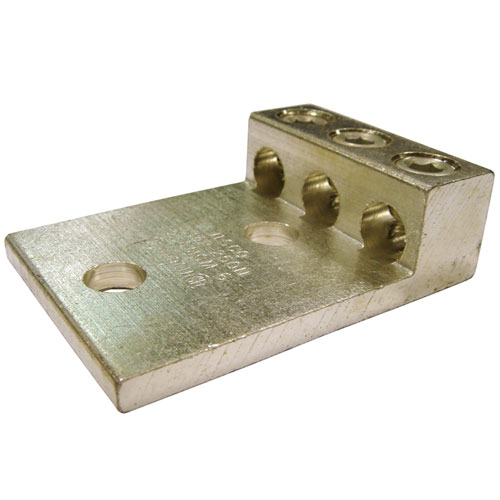

ILSCO, Aluminum Mechanical Lug, T3A2-250N
View detailed images (1)

ILSCO, Aluminum Mechanical Lug, T3A2-250N

Aluminum Mechanical Lug, Dual Rated, 250 kcmil - 6 AWG Conductor Range, 1/2 Bolt Size, 0.31" Hex Size

SKUM46630
ManufacturerILSCO
Mfr. Part #T3A2-250N
UPC0783669898309
Points0.54
$53.73

Cross References
Manufacturer Part Number
BURNDY K3A29U-2N

Features
  • Manufactured from high strength 6061-T6 aluminum alloy
  • Electro-Tin plated
  • Suitable for use with either copper or aluminum conductors
  • Chamfered wire entry provides ease of installation
  • Must be mounted with a minimum of 2 bolts
  • Mounting hole spacing from side to side, hole to hole is 0.875"
Downloads
Specification
Type Aluminum Mechanical Lug
Lug Type Three Conductor Dual Rated
Conductor Wire Range 250 kcmil - 6 AWG
Hex Size (In.) 0.31
Bolt Size 1/2
Mounting Hole Spacing (In.) 1.75
Length (In.) 4.00
Height (In.) 1.19
Width (In.) 2.81
Standards UL Listed
