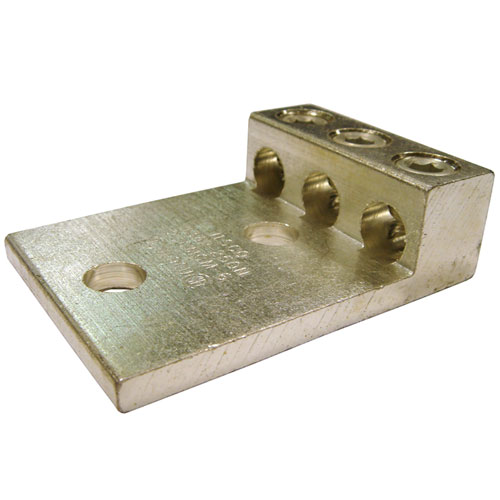

ILSCO, Aluminum Mechanical Lug, T3A2-2
View detailed images (1)

ILSCO, Aluminum Mechanical Lug, T3A2-2

Aluminum Mechanical Lug, Dual Rated, 2 AWG - 14 AWG Conductor Range, 5/16 Bolt Size, Slot Hex Size

SKUM46629
ManufacturerILSCO
Mfr. Part #T3A2-2
UPC0783669896541
Points0.22
$21.95

Cross References
Manufacturer Part Number
T&B ADR02-32

Features
  • Manufactured from high strength 6061-T6 aluminum alloy
  • Electro-Tin plated
  • Suitable for use with either copper or aluminum conductors
  • Chamfered wire entry provides ease of installation
  • Must be mounted with a minimum of 2 bolts
  • Mounting hole spacing from side to side, hole to hole is 0.875"
Downloads
Specification
Type Aluminum Mechanical Lug
Lug Type Three Conductor Dual Rated
Conductor Wire Range 2 AWG - 14 AWG
Hex Size (In.) Slot
Bolt Size 5/16
Mounting Hole Spacing (In.) 0.88
Length (In.) 2.19
Height (In.) 0.63
Width (In.) 1.59
Standards UL Listed
