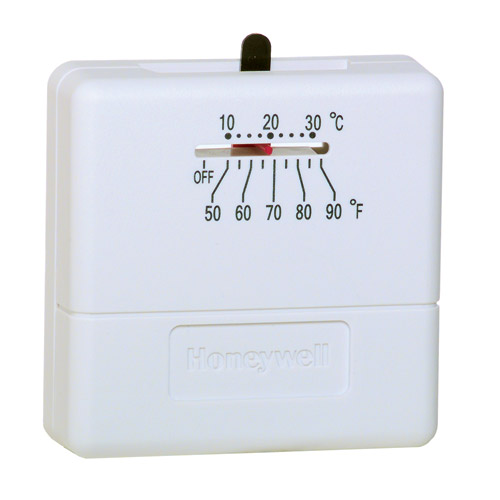

| Type | Low Voltage Thermostat |
|---|---|
| Application | Heat Only |
| Programmable | Non-Programmable |
| Stages | 1 Heat |
| Setting Temperature Range (F) | 45 to 95 |
| Voltage (V) | 20 to 30 |
| Mounting | Square |
| Sensor Element | Bitmetal |
| Switching Action | SPST |
| Accuracy (F) | 3 |
| Current | Heat Current : 1.0A running, 2.5A inrush at 24 Vac Fan Current : 1.0A running, 5A inrush at 24 Vac |
| Terminal Designations | W, R |
| Color | Premier White® |
| Height (In.) | 3.13 |
| Width (In.) | 3.13 |
| Depth (In.) | 7.13 |
