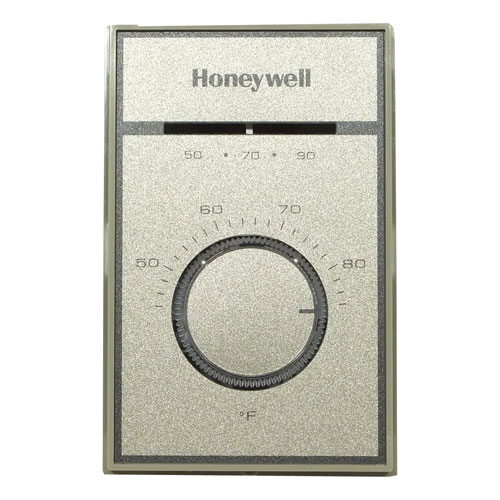

| Type | Line Voltage Thermostat |
|---|---|
| Application | Heating and Cooling |
| Programmable | Non-Programmable |
| Stages | 1 Heat / 1 Cool |
| Setting Temperature Range (F) | 44 to 86 |
| Differential Temperature (F) | 2 |
| Voltage (V) | 120/277 |
| Electrical Ratings | 9.8 FLA / 58.8 LRA @ 120VAC 5.6 FLA / 33.6 LRA @ 208VAC 4.9 FLA / 29.4 LRA @ 240VAC 4.2 FLA / 25.2 LRA @ 277VAC 22A @ 120 - 240VAC Resistive 19A @ 277VAC Resistive |
| Sensor Element | Vapor Filled Dual Diaphragm |
| Switching Action | SPDT |
| Frequency (Hz) | 50/60 |
| Color | Champagne Gold Face-Plate with Beige Cover |
| Height (In.) | 4.50 |
| Width (In.) | 2.94 |
| Depth (In.) | 1.50 |
| Standards | UL Listed, CSA Certified |
