Fluke, Digital Multimeters, FLUKE-87-5
View detailed images (1)

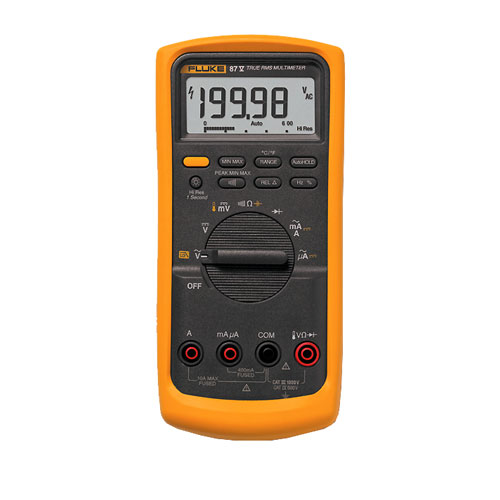

Fluke, Digital Multimeters, FLUKE-87-5

Industrial True-RMS Multimeter with Temperature, 1000V RMS Max. Voltage

SKUM48371
ManufacturerFLUKE
Mfr. Part #FLUKE-87-5
UPC095969245241
Points5.54
$553.84

Features
  • Unique Function for accurate Voltage and Frequency Measurements on Adjustable Speed Moter drives and Electrcically Noisy Equipment
  • Large Digit Display with bright Two Level Backlight makes the 87V Significantly Easier to Read
  • Measure 20 A for up tp 30 sec, 10 A continuously
  • Optional Magnetic Hanger for Easy Setup and Viewing while Freeing your Hands for Other Tasks (TPAK)
  • Expanded Capacitance Range to 10,000 μF
  • Built-in Thermometer
Downloads
Specification
Class 80 Series
Type True-RMS Multimeter with Temperature
Capacitance 10.00 nF, 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 9,999 AC62μF, 1.0% Accuracy
Resistance 600.0 Ω, 6.000 kΩ, 60.00 kΩ, 600.0 kΩ, 6.000 MΩ, 50.00 MΩ, 0.2% Accuracy
Operating Frequency 199.99 Hz, 1.9999 kHz, 19.999 kHz, 199.99 kHz, 1.0% Accuracy
Max. Voltages (V) 1000 V rms
DC Volts Range 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V
DC Volts Basic Accuracy 0.05%
AC Volts Range 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V
AC Volts Basic Accuracy 0.7% (True-rms)
DC Current Range 600.0 μA, 6000 μA, 60.00 mA, 600.O mA, 6.000 A, 10.00 A
DC Current Accuracy 0.20%
AC Current Range 600.0 μA, 6000 μA, 60.00 mA, 600.O mA, 6.000 A, 10.00 A
Display • digital : 6000 Counts updates 4/sec; (Model 87V also has 19,999 Counts in high-resolution mode)
• Analog : 33 Segments, updates 40/sec.
• Frequency : 19.999 Counts, updates 3/sec at > 10Hz
Power Supply 9V zinc, NEDA 1604 or 6F22 or 006P
Battery Life 400 hours typical with alkaline (with backlight off)
Temperature -200 to 1090 °C (-328 to 1994 °F), 1.0% Basic Accuracy
Altitude • Operating : 2000m
• Storage : 10,000m
Hummidity 0 % to 90 % (0 °C to 35 °C); 0 % to 7 0% (35 °C to 55 °C)
Height 7.35
