Features

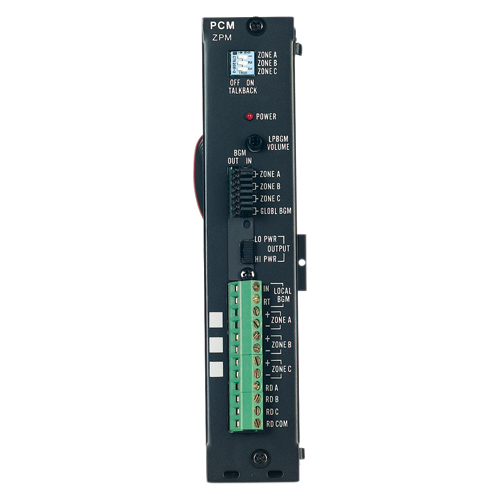

The Bogen PCMZPM module provides three zones of paging to the PCM2000 system. Up to three PCMZPM modules can be used in a basic system to provide up to nine zones of paging. Additional modules can be combined with a PCMCPU module in a satellite system when more than nine zones are required. Each PCMZPM module lets you set the talkback option (on or off) and background music options for each zone. Each zone can be connected or disconnected from the background music bus. Furthermore, the entire module can be disconnected from the bus and a local background music source substituted. Each module can also be configured for high-power operation (when using passive speakers and a central amplifier), or low-power operation (supplying low level signals to amplified speakers). A relay driver is provided for each zone, becoming active when the zone is active.

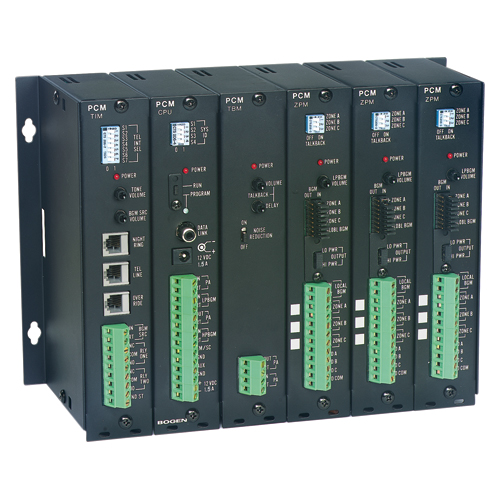

PCM-2000 System

Minimum system configuration consists of three modules: PCMCPU, PCM-TIM, and PCM-ZPM. To this, you can add up two additional PCMZPM modules and/or talk back module (PCMTBM). If more than 9 zones are required, satellite systems can be added to bring total capacity to 99 zones. The PCM-2000 system provides the following features and functions:


Voice Channel:

• Zone Paging & sub zone group paging (up to 32 zone groups, each with up to 99 zones)
• Override paging (using loop start or contact closure)
• Talk back paging (centrally-amplified zone only)
• High powered central paging
• Low power distributed paging
• Privacy beep on talk back zones
• Pre-announce tone

Background Music:

• Low-power distributed (buffered for up to 50 amplified speakers)
• High-power, using dedicated BGM amplifier
• High-power using a single paging/BGM amplifer
• BGM disable to individual zones
• Local BGM input on each individual zone module

Signalling Channel:

• Night ringer (90V or contact closure activation)
• Code calling (2 types - echo & pattern)
• Emergency/shift change tone (tone and duration selectable)

Other Features:

• DTMF setting of all operating parameters
• Run/Program switch
• External C-form contacts
• Relay driver output per zone
• Nonvolatile memory for setup data (no backup battery required)
• Talk/Talk back selection per zone
• Setup tone to assist in volume setting, etc

Specialized Features:

• Specialized modules provide time-triggered signalling
• Talk back paging

* Specifications and features are subject to change without prior notice.
