Bogen, Reentrant Horn Loudspeaker, SPT15A

Bogen, Reentrant Horn Loudspeaker, SPT15A

Reentrant Horn Loudspeakers (Supports up to 15W)

SKUM45035
ManufacturerBogen
Mfr. Part #SPT15A
Special Order Item- Additional Freight May Be Required
UPC765368360332
Points0.89
$88.83


Features

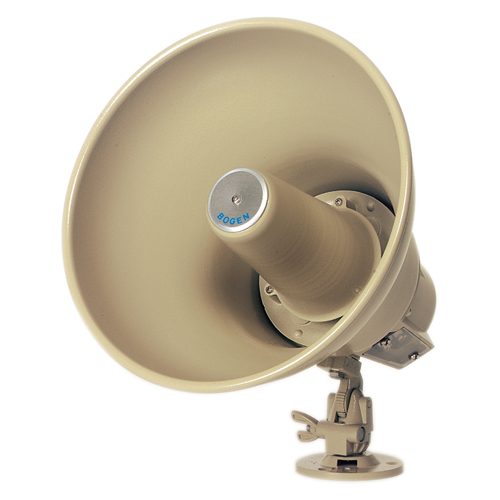

The Bogen SPT15A is compact, high intelligibility, reentrant type loudspeakers, designed for one-way or two-way sound and communication systems. Their sturdy, weatherproof, all-metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. Screw terminals make installation fast and easy.

The Model SPT15A has a built-in, rotary impedance selector switch for matching the speaker power requirements to a 25V or 70V constant-voltage line.

Engineered to simplify installation (with a uniquely designed all-purpose mounting bracket) and field maintenance (with a self-aligning, field replaceable diaphragm), use of Bogen horn-type loudspeakers saves both time and money.

The speaker and mounting bracket are handsomely finished in textured mocha enamel. It has a 9" diameter and is 9-1/4" deep.

  • High intelligibility and efficiency; ideal for both one-way and talk back applications
  • Weatherproof, all-metal construction
  • 15 watts; 25/70 volt operation
  • Variable-tap impedance selector on SPT15A
Downloads
Specification
Frequency Respons 275Hz to 14kHz
Dispersion 110�
Sensitivity as Microphone -22dBm [Ref: 10 dynes/cm2]
Impedance Selector Switch Settings 25V @ 15, 7.5, 1.8, 0.94, 0.46 watts
70V @ 15, 7.5, 3.8, 1.8, 0.9 watts
Power Rating (RMS) 15 watts continuous, 20 watts equalized
Dimensions (In.) 9 (Diameter) x 9.25 (D)
