AIPHONE, JKS Boxed Sets, JKS-1AEDF - Get a Quote

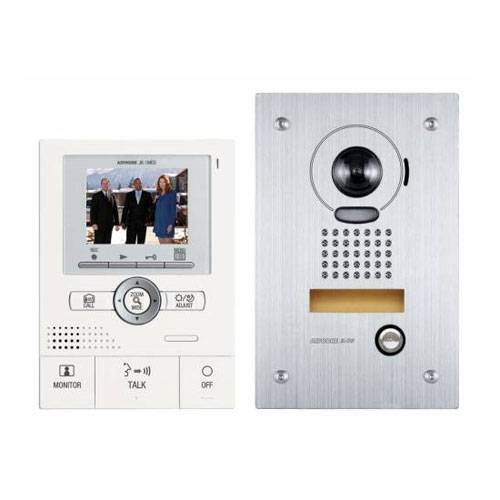

Video Intercom Systems, JK Series Boxed Sets, JK-1MED / JK-DVF / Power Supply, JKS-1AEDF

SKUM55315
ManufacturerAIPHONE
Mfr. Part #JKS-1AEDF
In Stock - Ships Today
Request a quote for Better Price
UPC790143568986
Points8.58
$858.00

aiphone jfs-2aedv

Includes the following

Products Quantity
Tenant Station : JK-1MED 1
Entrance Station : JK-DVF 1
Power Supply : PS-1820UL 1


Features
  • JKS Boxed Sets - This set includes one JK-1MED master monitor, one PS-1820UL power supply and one of three available door stations
  • JKS-1AEDF: JK-DVF Surface mount, ABS Plastic
  • Wide Angle Lens : Door stations capture an amazing 170 degree view
  • TFT LCD Monitor : High resolution screen provides great detail & clarity
  • Sensor Input : ACticates a warning screen on the monitor & sounds an alert on all door, sub & master stations
  • Master & Sub Call : Instatntly communicate between the master & sub master stations
  • Easy Installation : Using only 2 wires from the door to the master, the JK Sereis in quick & easy to install
  • Discreet Monitoting : See & hear actibity at the door station without visitors knowing
  • VOX or PTT : Hands-free communication or push-to talk
  • Option Button : Provides a dry contact (Can be used for a 2nd door release, gate release, lights, etc)
Specification
Type Packages
Series JK
Packages Unit JK-1MED, JK-DVF, PS-1820UL
Power Source 18V DC(PS-1820UL)
Mount Type Surface
Camera 3.5" direct view TFT color LCD
Capacity of Enterance unit 1
Capacity of Tenant Unit 2
Relay Contact Rating 24V AC/DC, 500mA, Use RY-18L for larger contact rating
Wiring • Door to Master : 2-cond., Mid Cap, Solid, Non-Shielded
• Master to Sub : 4-cond., Mid Cap, Solid, Non-shielded
Distance • Door to Master : 165'(22AWG), 330'(18AWG)
• Master to Farthest Sub Master : 165'(22AWG), 330'(18AWG)
• Master to IER-2 : 245'(22AWG), 490'(18AWG)
Wire Type • Master to Door : Aiphone #871802
• Between Masters/Subs : Aiphone #871808
Calling Chime, Image and Audio approx. 45sec
Nightviewing Up to 1'-5/8" from camera, with white LED projected, Background beyond 1'-5/8" cannot be seen
Height (In.) • JK-1MED : 7.31
• JK-DVF : 8.25
Width (In.) • JF-1MED : 5.31
• JK-DVF : 5.31
Depth (In.) • JF-1MED : 1.06
• JK-DV : 1.88
Warranty 2 Years
