| Type | Packages |
|---|---|
| Series | JF |

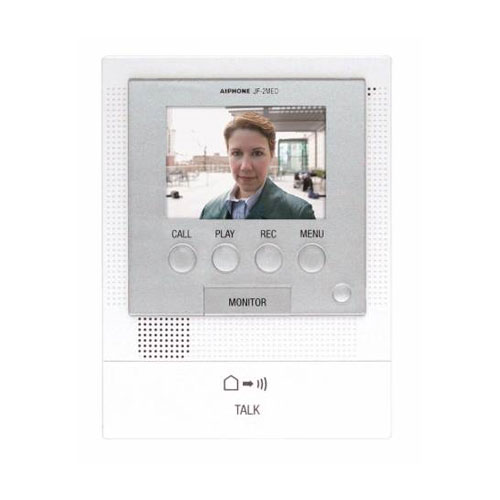

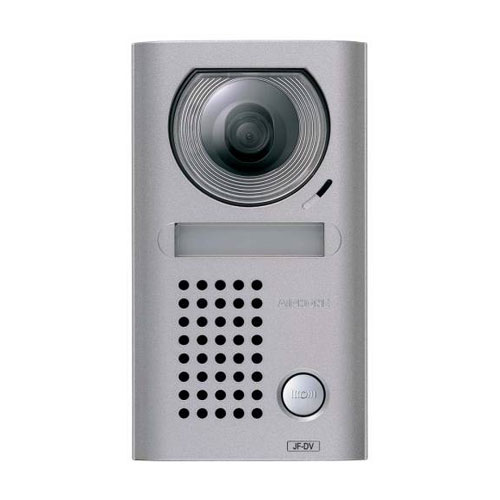

| Packages Unit | JF-2MED, JF-DV, Power Supply |

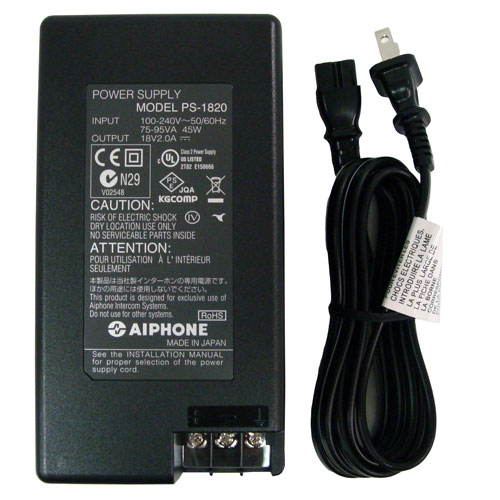

| Power Source | 18V DC(PS-1820UL) |
| Mount Type | Surface |
| Camera | 3.5" direct view TFT color LCD |
| Capacity of Enterance unit | 2 |
| Capacity of Tenant Unit | 3 |
| Relay Contact Rating | 24V AC/DC, 500mA, Use RY-18L for larger contact rating |
| Wiring | • Door to Master : 2-cond., Mid Cap, Solid, Non-Shielded • Master to Sub : 4-cond., Mid Cap, Solid, Non-shielded |
| Wiring Distance | • Door to Master : 165'(22AWG), 330'(18AWG) • Master to Farthest Sub Master : 165'(22AWG), 330'(18AWG) • Master to IER-2 : 245'(22AWG), 490'(18AWG) |
| Wire Type | • Master to Door : Aiphone #871802 • Between Masters/Subs : Aiphone #871804 |
| Calling | Chime, Image and Audio approx. 45sec |
| Nightviewing | Up to 1' from camera, with white LED projected, Background beyond 1' cannot be seen |
| Height (In.) | • JF-2MED : 7.00 • JF-DV : 6.81 |
| Width (In.) | • JF-2MED : 5.31 • JF-DV : 3.88 |
| Depth (In.) | • JF-2MED : 1.06 • JF-DV : 1.06 |
