Aiphone - DBS-1A

Aiphone - DBS-1A

Silver Door Phone Kit with Open Voice Master Station

SKUM79108
ManufacturerAIPHONE
Mfr. Part #DBS-1A
Points2.03
$203.40

Features
  • Door release powered by door station without the need of an additional transformer
  • Backlit directory
  • All Call between stations within same tenant residence or office
  • Option button to control an external device
  • Call tone volume control with mute indicator

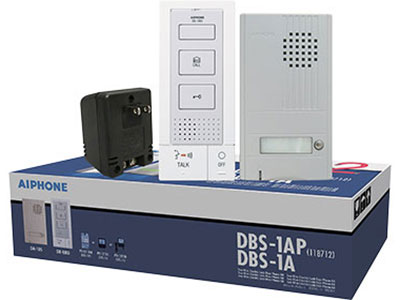

  • Convenient box set is complete with a tenant master station, a 1-call entrance station, and a power supply (up to 3 more tenant master stations and 15 tenant sub stations can be added for a full 1 x 4 x 16 system)
  • Optional call extension speaker
Specification
Communication Hands-free (VOX) or push-to-talk (simplex)
Door Release 9.5~20V AC, 70Ω or higher resistance - use EL-12S
Wire Type Entrance Station to Tenant Master Station: 2-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871802 Tenant Master Station to Tenant Sub Station: 4-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871804 Between Tenant Su
Distance Power Supply to Entrance Station or Door Strike (cumulative): 360'(22AWG) 1,020'(18AWG) Power Supply to Tenant Master Station: 180'(22AWG) 510'(18AWG) Tenant Master Station to farthest Tenant Sub Station: 330'
