LittleGIANT, Pump, 6-CIA

LittleGIANT, Pump, 6-CIA

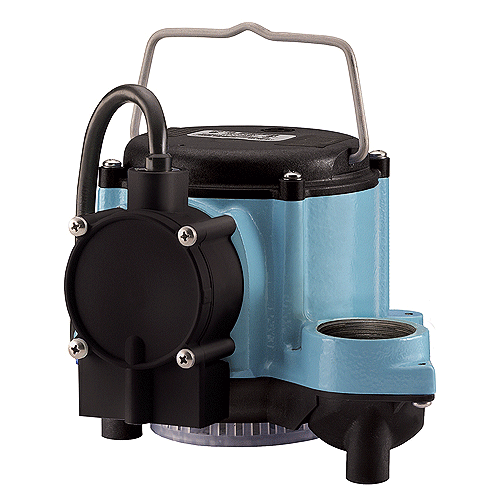

Big John Submersible Sump Pump (506158)

SKUM63261
ManufacturerLittleGIANT
Mfr. Part #6-CIA
UPC010121061583
Points1.23
$123.16

Features
  • Cast iron pump housing with protective epoxy coating for corrosion resistance
  • Oil-filled motor housing for lifetime lubrication and rapid heat dissipation
  • 1/3 HP shaded pole motor
  • Stainless steel screws, bolts and handle to protect against corrosion
  • Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) to assure maximum protection against pump failure
  • Bearings: Upper and lower sintered sleeve bearings for extended motor life
  • Thermal overload protection
  • Manual and automatic models
  • Automatic operation with pressure switch activates pump when water level is between 7" and 10". Pump shuts off when water level falls to between 1" and 4" (pressure switch is non-adjustable)
Downloads
Specification
Motor (HP) 1/3
Flow 46 GPM , 5' of Head
Cord Length (Ft.) 8
Shut Off (Ft.) 18
Voltage (V) 115
Hertz (Hz.) 50/60
Amps (A) 9
Watts (W) 720
Height (In.) 6
Width (In.) 8.5
Length (In.) 9.5
Standards UL Listed and CSA Certified
