BRK Electronics, Carbon Monoxide, CO5120BN
View detailed images (1)

BRK Electronics, Carbon Monoxide, CO5120BN

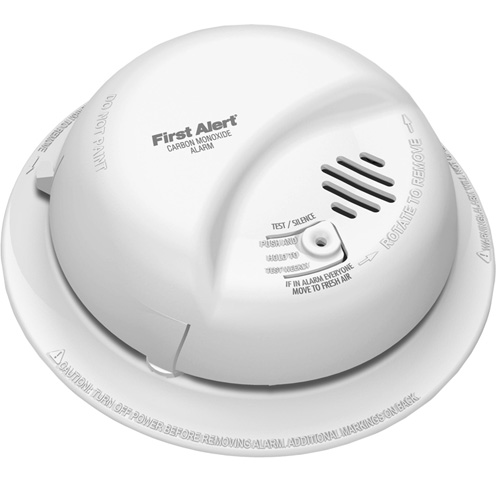

Carbon Monoxide Alarm, 120V AC 60Hz Wire-in with 9V Battery Back-up

SKUM31569
ManufacturerBRK Electronics
Mfr. Part #CO5120BN
UPC029054856173
Points0.34
$34.36

Related Categories
Features
  • Electrochemical Carbon Monoxide Sensor - the most accurate sensor available as compared to other sensing technologies
  • Single button test/silence
  • 9V Alkaline Battery Backup
  • Latching alarm indicator - remembers which unit initiated an alarm
  • Two silence features - can silence the low-battery chirp for up to eight hours or temporarily silence an unwanted nuisance alarm
  • Intelligent Sensing Technology™ helps reduce the number of nuisance alarms
  • Dust Cover
  • Easy Installation/Maintenance
Downloads
Specification
Operating Voltage 120V AC 60Hz w/ 9V battery backup
Operating Current 90 mA (standby/alarm)
Temperature Range 40°F (4.4°C) to 100°F (37.8°C)
Humidity Range 10% to 90% relative humidity (RH)
Audio Alarm 85dB at 10 ft
Sensor Metal Oxide
LED AC Power: Constant Red LED
DC Power: Intermittent Red LED
Local Alarm: Red LED flashes rapidly, audio alarm
Remote Alarm: Red LED out, audio alarm
Latching Alarm: Red LED flashes every
5 seconds after local alarm stops, audio off
Interconnects 18 total with CO Alarms: CO5120PDBN, CO5120BN
Smoke Alarms: SC6120B, 4120, 4120B, 4120SB, 4120AB, 4120SAB, 2002RAC, 100S, 5919, 5919TH
Heat Alarms: HD6135F, HD6135FB
Dia (In.) 5.40
Height (In.) 1.86
Standards UL 2034
Warrenty 5 Years Limited
