IDEAL, Vol-Con® XL-Series Solenoid Voltage Testers, 61-086

Solenoid Voltage Testers, Vol-Con® XL Voltage/Continuity Tester, Audible Continuity Audible Voltage Indication tests from 6-600V AC/DC

Quantity

Add to cart

Add to My favorites

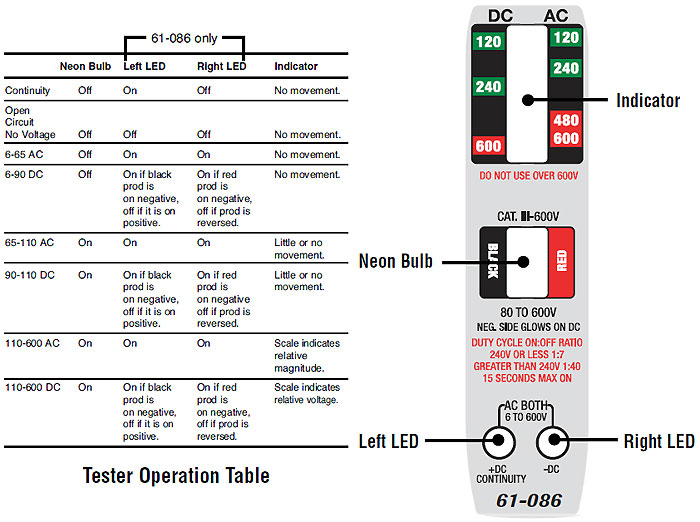

Tester Operating Table

Features
Extremely Rugged and Reliable Three-in-One Tester Vibrates when Voltage is Present Tests for High Voltage up to 600V AC/DC Tests for Voltage as low as 6V AC/DC Automatic Switching Continuity Tester Replaceable Leads with Shielded Probe Tips Bright, Long-Life LED and Neon Indicators CAT III 600V

Specification

Class	Solenoid Voltage Testers
Type	XL-Series Solenoid Voltage Testers
VAC Ranges	120V, 240V, 480V, 600V AC
VAC Accuracy	Relative indication only
VDC Ranges	120V, 240V, 600V DC
VDC Accuracy	Relative indication only
Contiunuity	Continuous LED and audible indication at less than 500kΩ resistance, Response time of 100ms
Operating Frequency	25-60Hz
Input Inpedance	Low
Power Supply	(4) 1.5V (IDEAL# 61-201, IEC#LR44, or NEOA# 1166A)
Battery Life	200 hours typical
Altitude	2000m
Operating Environment	32°F to 122°F (0°C to 50°C) at < 70% Relative Humidity, Indoor Use
Storage Environment	-4°F to 140°F (-20°C to 60°C) at <80% Relative Humidity
Includes	Test Leads, (4) 1.5V "LR44" Batteries, Operating Instructions
Height	6.00
Width	2.30
Depth	1.20
Standards	UL Listed and CE Marking Certified
Warranty	2 Year Limited
