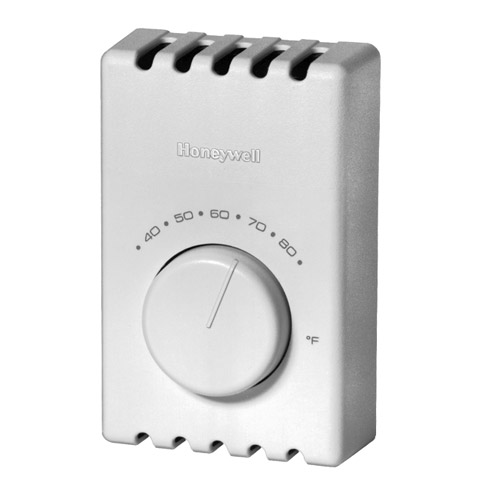

Honeywell, Line Voltage Thermostat, T410B1004

Honeywell, Line Voltage Thermostat, T410B1004

Line Voltage, Electric Heat Thermostat white for Electric Baseboard Heat

SKUM31586
ManufacturerHoneywell
Mfr. Part #T410B1004
UPC085267088282
Points0.25
$24.57

Features
  • Replace virtually any two-wire (T410A) or four-wire (T410B) line voltage wall-mounted electric heating thermostat
  • Easy to install; 6 in. (150 mm) color-coded leads
  • Include long-lasting Micro Switch™ mechanism
  • Rugged, plastic mounting base and one-piece cover with vents
  • Ideally suited to new construction applications
Specification
Type Line Voltage Thermostat
Application Electronic Baseboard Heat
Programmable Non-Programmable
Stages 1 Heat
Setting Temperature Range (F) 40 to 80
Differential Temperature (F) 3
Voltage (V) 120/208/240/277
Electrical Ratings Noninductive Resistive 22A at 120/208/240 VAC
19A at 277 VAC
Mounting Vertical Mount
Sensor Element Bitmetal
Switching Action DPST
Frequency (Hz) 60
Color White
Height (In.) 4.50
Width (In.) 2.75
Depth (In.) 2.25
Standards UL Listed and CSA Certified
