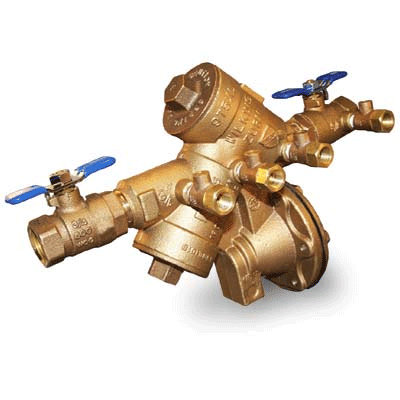

Wilkins, BackFlow Preventers, 2-975XL2, 2" LEAD FREE

Wilkins, BackFlow Preventers, 2-975XL2, 2" LEAD FREE

Lead Free, Reduced Pressure Principle Assembly, 2" Size, 175psi, 180°F, Cast Bronze

SKUM63408
ManufacturerWilkins
Mfr. Part #2-975XL2
UPC027557703239
Points19.16
$1,916.39

CAUTION
  • This product is not to be used to convey water for human consumption through cooking or drinking in California or Vermont
Features
  • Reduced pressure principle backflow preventer consisting of a pressure differential relief valve located between two independently operated spring-loaded wye type center guided check valves, wye pattern body
  • Complete with two full port resilient seated ball valves for shut-off and four resilient seated ball valve test cocks
  • Noryl® replaceable seats and silicone rubber check discs
  • Entire unit serviceable in line
  • With BSP threaded connections
  • Available with stainless steel ball valve handles (optional)
Downloads
Specification
Type BackFlow Preventers
Sub Type Reduced Pressure Principle Assembly
Size (In.) 2
Max Working Pressure (psi) 175
Max Working Temperature (°F) 180
Material Cast Bronze
Height (In.) 11.75
Width (In.) 26.50
Warranty 1 Year Limited
