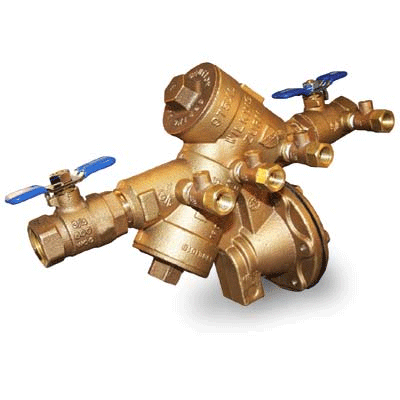

Wilkins, BackFlow Preventers, 1-975XL2, 1" LEAD FREE

Wilkins, BackFlow Preventers, 1-975XL2, 1" LEAD FREE

Lead Free, Reduced Pressure Principle Assembly, 1" Size, 175psi, 180°F, Cast Bronze

SKUM63405
ManufacturerWilkins
Mfr. Part #1-975XL2
UPC612052069791
Points6.58
$658.37

CAUTION
  • This product is not to be used to convey water for human consumption through cooking or drinking in California or Vermont
Features
  • Reduced pressure principle backflow preventer consisting of a pressure differential relief valve located between two independently operated spring-loaded wye type center guided check valves, wye pattern body
  • Complete with two full port resilient seated ball valves for shut-off and four resilient seated ball valve test cocks
  • Noryl® replaceable seats and silicone rubber check discs
  • Entire unit serviceable in line
  • With BSP threaded connections
  • Available with stainless steel ball valve handles (optional)
Downloads
Specification
Type BackFlow Preventers
Sub Type Reduced Pressure Principle Assembly
Size (In.) 1
Max Working Pressure (psi) 175
Max Working Temperature (°F) 180
Material Cast Bronze
Height (In.) 8.50
Width (In.) 17.38
Warranty 1 Year Limited
