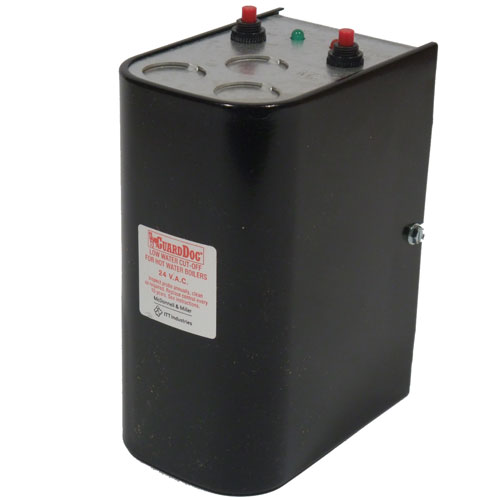

McDonnell & Miller, 752P-MT-24 (176296)

McDonnell & Miller, 752P-MT-24 (176296)

Electric Low Water Cut-Off For Hot Water Boiler 24V with manual reset, 752P-MT-24

SKUM48394
ManufacturerMcDonnell & Miller
Mfr. Part #176296
UPC027557367066
Points2.84
$283.50

Features
  • For residential, commercial and industrial applications
  • Electronic operation
  • User-friendly diagnostics
    - Red low water and shorted probe LED
    - Green power and test LED
  • Probe sensitivity: 7,000 ohms
  • No lock out with loss of power if probe is in water
  • No blow down of control required when mounted directly into boiler tappings
  • Test button standard on all models
  • Power consumption 1.7 VA
  • Provisions to add alarm
  • Maximum ambient temperature 120°F
  • Replaces discontinued model PS-852-M-24 (153918)
Downloads
Specification
Series PS-850
Pilot Duty 50 VA
Standards UL listed, CSA certified
Category Boiler Controls
