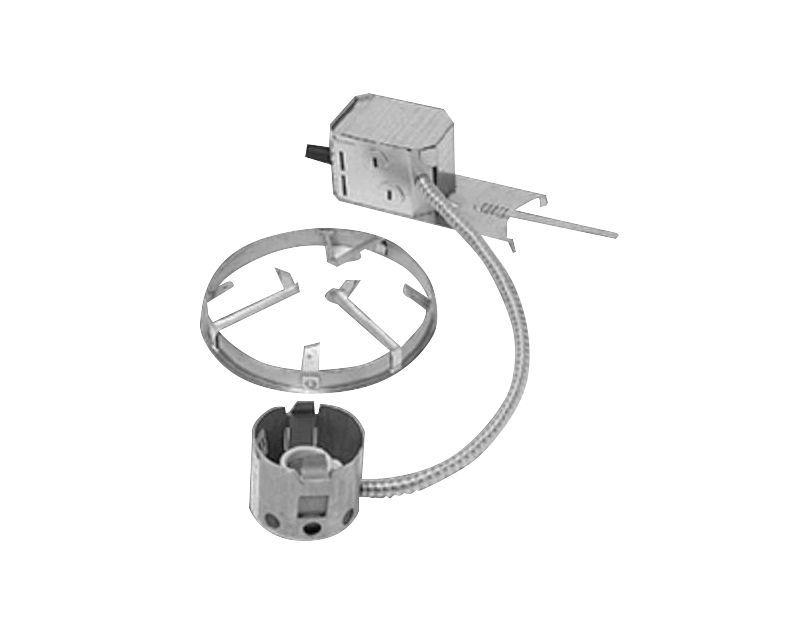

3 3/4 " Aperture Low Voltage MR16 Standard Frame-In Remodel Kit
Features
Junction Box: 4" x 3 1/2â€x 2", .063" (#14 ga.) galvanized steel. U.L. listed for maximum of 8 No. 12 ga. 90° C through branch circuit conductors (75° C end of run). Integral cable clamps permit attachment of nonmetallic Romex ® or armored cable witho
Socket Housing: Aluminum, with lamp adjustment assembly allows vertical and horizontal adjustment, (see reflector trim specification sheet for specific adjustment).
Socket: Field replaceable. Two pin socket, pre-wired with #18SF1 leads to junction box.
Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3" away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.
Mounting Ring: .048 (#18 ga.) galvanized steel. Accommodates existing ceilings up to 2" thick. Attaches securely to any type of ceiling material without tools using (3) mounting straps provided. Push-in/twist out clips hold reflector flush to ceiling. Inc
Nail Clips: Secures junction box and plate to ceiling.
