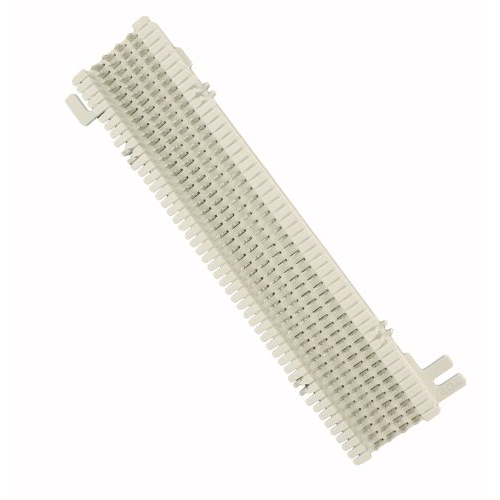

Leviton, 66 Clip Split 50 Pairs M Block, 40066-M50

Leviton, 66 Clip Split 50 Pairs M Block, 40066-M50

66 Clip Split M Block, 50 Pairs, Wall or Backboard Mount, CAT 5

SKUM48672
ManufacturerLeviton
Mfr. Part #40066-M50
UPC078477125328
Points0.11
$11.35

Features
  • The Split M Block shall provide 50 fixed cross-connections for voice, security and data applications
  • Compact design for space-limited applications
  • Terminate 22-26 AWG solid insulated cable or 18-19 AWG solid stripped cable
  • Route cable bundles adjacent to wiring base
  • The split M block, like the 25-pair M block, contains 50 rows of clips, but instead of one 4-slot clip, each row contains two separate 2-slot clips
  • By terminating 25 incoming pairs on the slots of the left-hand clips and an additional 25 pairs on the slots of the right-hand clips, 50 cross-connects can be made
  • Alternatively, bridging clips may be used to connect the two adjacent sets of clips together
Downloads
Specification
Type Block
Connector Type Category 5
Number of Pairs 50
Mount Wall or Backboard Mount
Width (In.) 3.31
Height (In.) 10
Depth (In.) 1.19
Standards UL Listed
