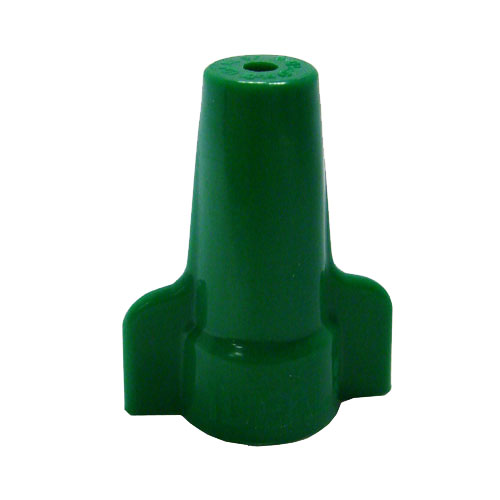

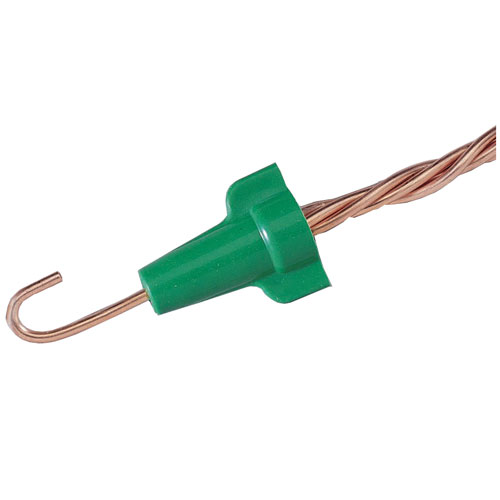

IDEAL, 14 to 10 AWG Grounding Wire Connector 30-092
View detailed images (2)

IDEAL, 14 to 10 AWG Grounding Wire Connector 30-092

14 to 10 AWG Grounding Wire Connector 30-092, 600V Max. Rating, 14 to 6 (2 #14 Min. to 3 #12 & 1 #14 Max.) AWG Wire Range, Green, Box of 100

SKUM47039
ManufacturerIDEAL
Units / Case100 / Box
Mfr. Part #30-092
UPC783250300921
Points0.29
$29.00
/ Box
Related Categories
Features
  • Designed for grounding and bonding
  • Accepts 2 #14 to 3 #12 w/1 #14 AWG wire combinations
  • Rated for 600 Volt maximum
  • Contoured wing design for secure grip
  • Live-action, square-wire spring
  • No pre-twisting required
  • UL Listed to 467 and CSA Certified to C22.2 #188; complies with Federal Specification W-S-610E
  • Reusable
  • Shell rated for 105° C
Downloads
Specification
Type Greenie® Grounding Connector
Max. Voltage Rating (V) 600
Temp. Rating (°F) 221 (105°C)
Color Green
Standards UL Listed and CSA Certified
Units Per Box 100
Wire Range (AWG) 14 to 10 (2 #14 Min. to 3 #12 & 1 #14 Max.)
