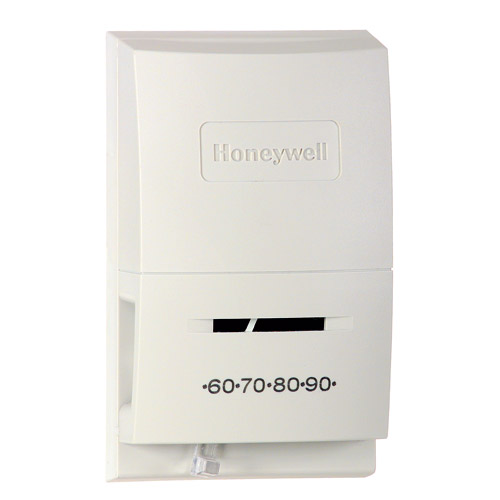

Honeywell, Low Voltage Thermostat, T822K1018

Honeywell, Low Voltage Thermostat, T822K1018

Low Voltage, Mercury Free Heat Only Thermostat

SKUM31591
ManufacturerHoneywell
Mfr. Part #T822K1018
UPC085267271325
Points0.36
$36.18

Features
  • Vented cover for improved temperature sensing
  • Setting lever and thermometer scale on thermostat cover
  • Mounts directly on the wall or on vertical outlet box
  • Integrated thermometer and setting scale
Downloads
Specification
Type Low Voltage Thermostat
Application Heat Only
Programmable Non-Programmable
Stages 1 Heat
Setting Temperature Range (F) 45 to 95
Voltage (V) 20 to 30
Electrical Ratings 0.18 - 1.0 A @ 24V
Mounting Vertical Mount
Sensor Element Bitmetal
Switching Action SPST
Accuracy (F) 2
Terminal Designations R, W
Color Premier White®
Height (In.) 4.75
Width (In.) 2.88
Depth (In.) 1.38
