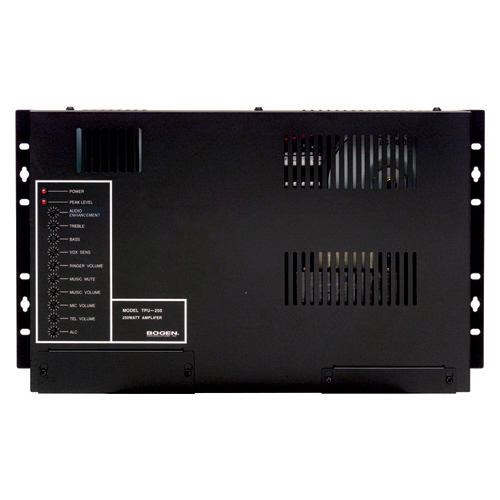

Bogen, Telephone Paging Amplifier, TPU250

Bogen, Telephone Paging Amplifier, TPU250

250-Watt telephone paging amplifier with a night ringer

SKUM45051
ManufacturerBogen
Mfr. Part #TPU250
Special Order Item- Additional Freight May Be Required
UPC765368200959
Points9.46
$945.69


Features

Bogen TPU250 is a wall-mounted telephone paging amplifier rated at 250 watts and can also be rack-mounted. It permits paging from telephone and/or microphone. Music input through an RCA jack or screw terminals. Voice-activated, variable level, music mute with fade back after page. The TPU100B include a night ringer which sends an electronic ringing tone signal through all speakers, alerting personnel of incoming calls during non-business hours. Jacks are also provided to bridge two TPU amplifiers to double the number of inputs and outputs.

  • 250-watt model
  • Inputs for 600-ohm balanced telephone line, LO-Z balanced microphone, and background music
  • Music input (RCA jack or screw terminals)
  • Integral automatic level control (ALC) circuit for controlling pages made by persons with varying voice levels and paging techniques
  • Page from telephone and/or microphone
  • Signal-activated paging channel automatically mutes background music
  • Adjustable background music muting level during a page
  • Music gradually returns to its normal level after a page
  • Aphex� Aural Exciter increases intelligibility, improves perceived loudness (with no increase in power), and reduces listener fatigue
  • Separate controls for page volume, music volume, night ringer, music mute, and Aphex� Aural Exciter
  • Bass and treble controls
  • Built-in night ringer activated by contact closure or by 90V ring signal
  • 25V and 70V outputs are available on the TPU250
  • VOX sensitivity level control eliminates transmission of background noise when paging from a telephone
  • Thermal and electronic overload protection
  • Jacks provided for bridging additional TPU amplifiers
  • Brackets are attached for easy wall mounting and can be rack-mounted
  • Peak level indicator lights when amplifier is driven into clipping
  • 120V AC, 60Hz power source
  • UL and CSA listed
Features
  • -4�F (-20�C) to 131�F (+55�C)
  • Black with silver lettering
  • 19 (W) x 10.5 (H) x 3.81 (D)
Downloads
Specification
TEL 600-ohm balanced line, transformer-isolated
MUSIC Hi-Z source, RCA jacks or screw terminals
MIC LO-Z balanced, screw terminal connection
MUSIC MUTE Mutes music during a microphone page
Inputs & Outputs
CONTACT RING Sounds night ringer tone when customer-supplied dry contacts are closed
TEL RING Sounds night ringer in response to 90V ring signal
BRIDGING Permits bridging of two amplifiers 25V and 70V
Outputs POWER & PEAK LEVEL LED indicators. APHEX, TREBLE, BASS, VOX SENS, RINGER VOLUME, MUSIC
Power Output 250W RMS
Frequency Response 70Hz to 15kHz �1dB
Distortion Less than 1%
Hum & Noise (20Hz to 20kHz)
MUSIC: -70dB
TEL: -70dB
MIC: -55dB
Sensitivity MUSIC: 85mV
TEL: -20dBm (77mV)
MIC: 600μV
Tone Control BASS: �9dB @ 100Hz
TREBLE: �9dB @ 10kHz
Regulation 2dB
Controls & Indicators MUTE, MUSIC VOLUME, MIC VOLUME, TEL VOLUME, ALC controls (screwdriver-adjustable)
Overload Protection Thermal and electronic overload protection
6.0A, slow blo fuse
Power Requirements 120V AC, 60Hz, 5A
