Telephone Interface Module for PCM2000 (Zone Paging System)

SKUM45041
ManufacturerBogen
Mfr. Part #PCMTIM
UPC765368200294
Points1.84
$184.04


Features

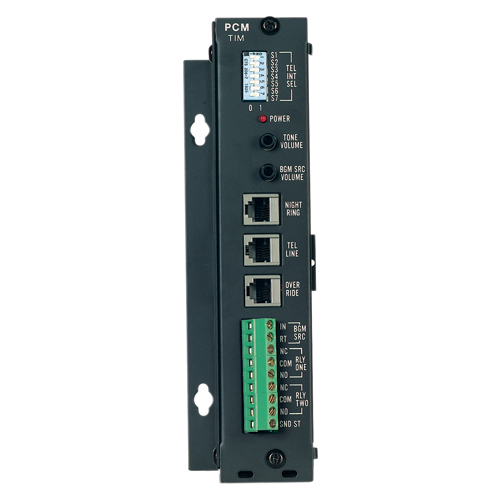

The Bogen Model PCMTIM is the telephone interface module for the Bogen PCM Zone Paging System, PCM2000. Only one module is required per system. The PCMTIM provides the telephone interface (including talk battery), night ringer input, emergency over ride input, background music source input, and auxiliary relay contacts for the system. The module is also responsible for all tone signaling features. Controls are included for background music volume and tone volume.

Interface

The PCM connects to virtually any telephone system:
PBX station lines and CO lines,
PBX Loop Start Trunk Ports,
PBX Ground Start Trunk Ports, and
Page Ports (using contact closure or VOX activation).

Interface installation consists of setting DIP switches and connecting with modular (RJ-11) telephone plugs.


PCM-2000 System

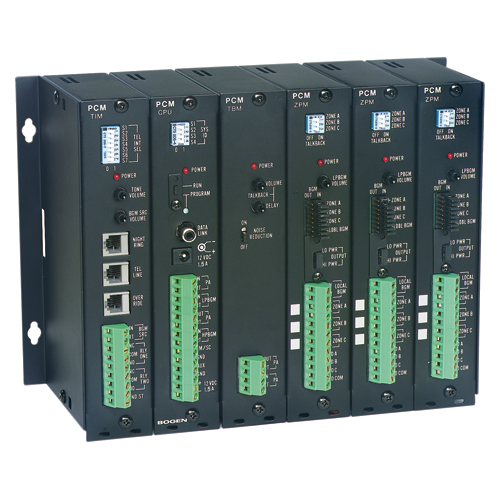

Minimum system configuration consists of three modules: PCMCPU, PCM-TIM, and PCM-ZPM. To this, you can add up two additional PCMZPM modules and/or talk back module (PCMTBM). If more than 9 zones are required, satellite systems can be added to bring total capacity to 99 zones. The PCM-2000 system provides the following features and functions:


Voice Channel:
  • Zone Paging & sub zone group paging (up to 32 zone groups, each with up to 99 zones)
  • Override paging (using loop start or contact closure)
  • Talk back paging (centrally-amplified zone only)
  • High powered central paging
  • Low power distributed paging
  • Privacy beep on talk back zones
  • Pre-announce tone

Background Music:
  • Low-power distributed (buffered for up to 50 amplified speakers)
  • High-power, using dedicated BGM amplifier
  • High-power using a single paging/BGM amplifer
  • BGM disable to individual zones
  • Local BGM input on each individual zone module

Signalling Channel:
  • Night ringer (90V or contact closure activation)
  • Code calling (2 types - echo & pattern)
  • Emergency/shift change tone (tone and duration selectable)

Other Features:
  • DTMF setting of all operating parameters
  • Run/Program switch
  • External C-form contacts
  • Relay driver output per zone
  • Nonvolatile memory for setup data (no backup battery required)
  • Talk/Talk back selection per zone
  • Setup tone to assist in volume setting, etc

Specialized Features:
  • Specialized modules provide time-triggered signalling
  • Talk back paging


* Specifications and features are subject to change without prior notice.
