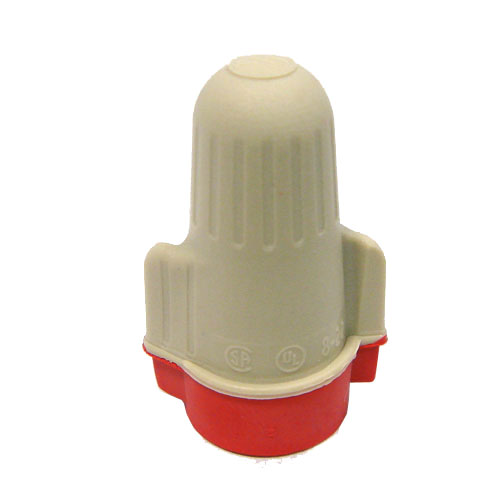

3M, "Performance Plus" Wire Connector, T/R+ JUG
View detailed images (1)

3M, "Performance Plus" Wire Connector, T/R+ JUG

Wire Connector, Spring Connector, Quick Bite, Compact Size Wide Wire Range, 600V Max. Rating, 22 to 8 AWG Wire Range, 221°F Rating, Tan/Red, Jug of 750

SKUM47037
Manufacturer3M
Units / Case750 / Jug
Mfr. Part #T/R+JUG
UPC051128544556
Points1.43
$142.50
/ Jug
Related Categories
Applications
  • Use a 3M™ Wire Connector T/R+ to electrically connect two or more conductor ends in pigtail application and insulate the connection
Features
  • 3M T/R+ Wire Connector is capable of connecting two or more wires in a pigtail application, in the wire range of No. 22 thru No. 8 AWG solid and/or stranded copper conductors
  • The connector shall be constructed of an active (live) spring with a corrosion resistant coating
  • The connector shall be UL LISTED and CSA Certified as a pressure wire connector
  • The connector shall be voltage rated 600 volts maximum building wire and 1000 volts maximum signs and lighting fixtures (luminaries)
  • The connector shall have a maximum operating temperature of 105°C (221°F)
Downloads
Specification
Type Quick Bite, Compact Size Wide Wire Range
Max. Voltage Rating (V) 600 (1000V In Signs, Lighting Fixtures and Luminaires)
Temp. Rating (°F) 221 (105°C)
Color Tan/Red
Width (In.) 0.76
Standards UL Listed, CSA and CE Certified
Height (In.) 1.17
Wire Range (AWG) 22 to 8
Units Per Jug 750
